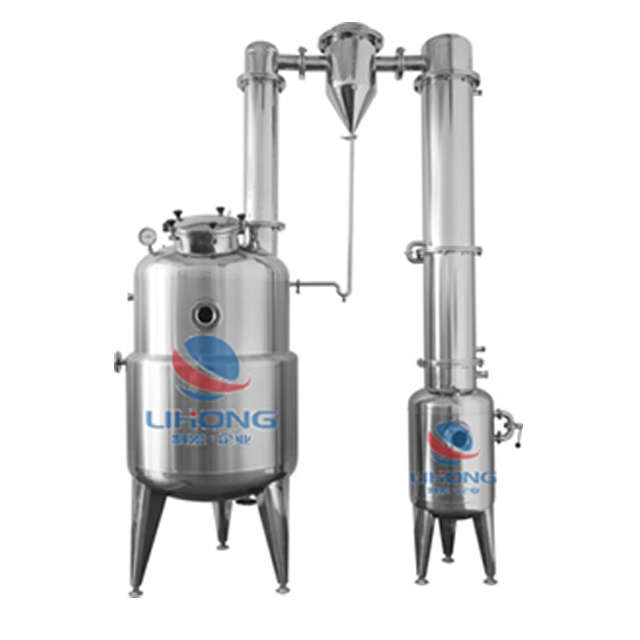

The Zn series vacuum reduced pressure concentration tank mainly includes a concentrated tank, a condenser, a vapor separator, a cooler, a liquid tank 5 component, a concentrated tank is a jacket structure, a condenser as a tube type, a cooler is a coil structure . The Zn series vacuum reduced pressure condensed can be used in the concentration of the liquid liquid, and can be used as a recycled alcohol and simple reflow extraction. The equipment and material contact portions are made of stainless steel SUS304 (or SUS316L), with good corrosion resistance and meet GMP medical standards.
Model Specification Model and Specification | Zn-50 | Zn-100 | Zn-200 | Zn-300 | Zn-50o | Zn-700 | Zn-1000 | Zn-2000 | |
Evaporative ability (kg / h) | 20 | 40 | 60 | 80 | 100 | 130 | 160 | 350 | |
Yanqi Pressure (MPA) | 0.09 | ||||||||
Heating area (N) | 0.4 | 0.6 | 0.8 | 1.1 | 1 .2 | 2 | 2.5 | 5.5 | |
Coagulation area (T) | 1.2 | 1.7 | 2.4 | 3.0 | 3.2 | 3.6 | 4.5 | 14 | |
Cooling area (N) | 0.25 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.1 | 3 | |
Substrate capacity L) | 15 | 45 | 60 | 76 | 100 | 125 | 140 | 185 | |
Mao energy (kg / h) | 23 | 46 | 70 | 92 | 115 | 150 | 185 | 403 | |
True (MPA) | -0.08 | ||||||||
Container categories | Normal pressure | ||||||||
Equipment weight (kg) | 410 | 470 | 605 | 715 | 862 | 1015 | 1250 | 2600 | |
Dimensions DINCNSION (MM) | Length | 1200 | 1350 | 1700 | 1800 | 2100 | 2400 | 2390 | 2730 |
Width W | 600 | 750 | 800 | 950 | 1200 | 1300 | 1300 | 1500 | |
High H | 2200 | 2200 | 2700 | 2850 | 3400 | 3400 | 3720 | 4700 |
The Zn series vacuum reduced pressure concentration tank mainly includes a concentrated tank, a condenser, a vapor separator, a cooler, a liquid tank 5 component, a concentrated tank is a jacket structure, a condenser as a tube type, a cooler is a coil structure . The Zn series vacuum reduced pressure condensed can be used in the concentration of the liquid liquid, and can be used as a recycled alcohol and simple reflow extraction. The equipment and material contact portions are made of stainless steel SUS304 (or SUS316L), with good corrosion resistance and meet GMP medical standards.
Model Specification Model and Specification | Zn-50 | Zn-100 | Zn-200 | Zn-300 | Zn-50o | Zn-700 | Zn-1000 | Zn-2000 | |
Evaporative ability (kg / h) | 20 | 40 | 60 | 80 | 100 | 130 | 160 | 350 | |
Yanqi Pressure (MPA) | 0.09 | ||||||||
Heating area (N) | 0.4 | 0.6 | 0.8 | 1.1 | 1 .2 | 2 | 2.5 | 5.5 | |
Coagulation area (T) | 1.2 | 1.7 | 2.4 | 3.0 | 3.2 | 3.6 | 4.5 | 14 | |
Cooling area (N) | 0.25 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.1 | 3 | |
Substrate capacity L) | 15 | 45 | 60 | 76 | 100 | 125 | 140 | 185 | |
Mao energy (kg / h) | 23 | 46 | 70 | 92 | 115 | 150 | 185 | 403 | |
True (MPA) | -0.08 | ||||||||
Container categories | Normal pressure | ||||||||
Equipment weight (kg) | 410 | 470 | 605 | 715 | 862 | 1015 | 1250 | 2600 | |
Dimensions DINCNSION (MM) | Length | 1200 | 1350 | 1700 | 1800 | 2100 | 2400 | 2390 | 2730 |
Width W | 600 | 750 | 800 | 950 | 1200 | 1300 | 1300 | 1500 | |
High H | 2200 | 2200 | 2700 | 2850 | 3400 | 3400 | 3720 | 4700 |
Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.
Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.
Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
1. Are you a factory or trading company?
We are a factory.
2. How long is the warranty period?
One year.
3. What's the main market of your company?
We have customers all over the world.
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc.
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
