ZN Series
Wenzhou Lihong

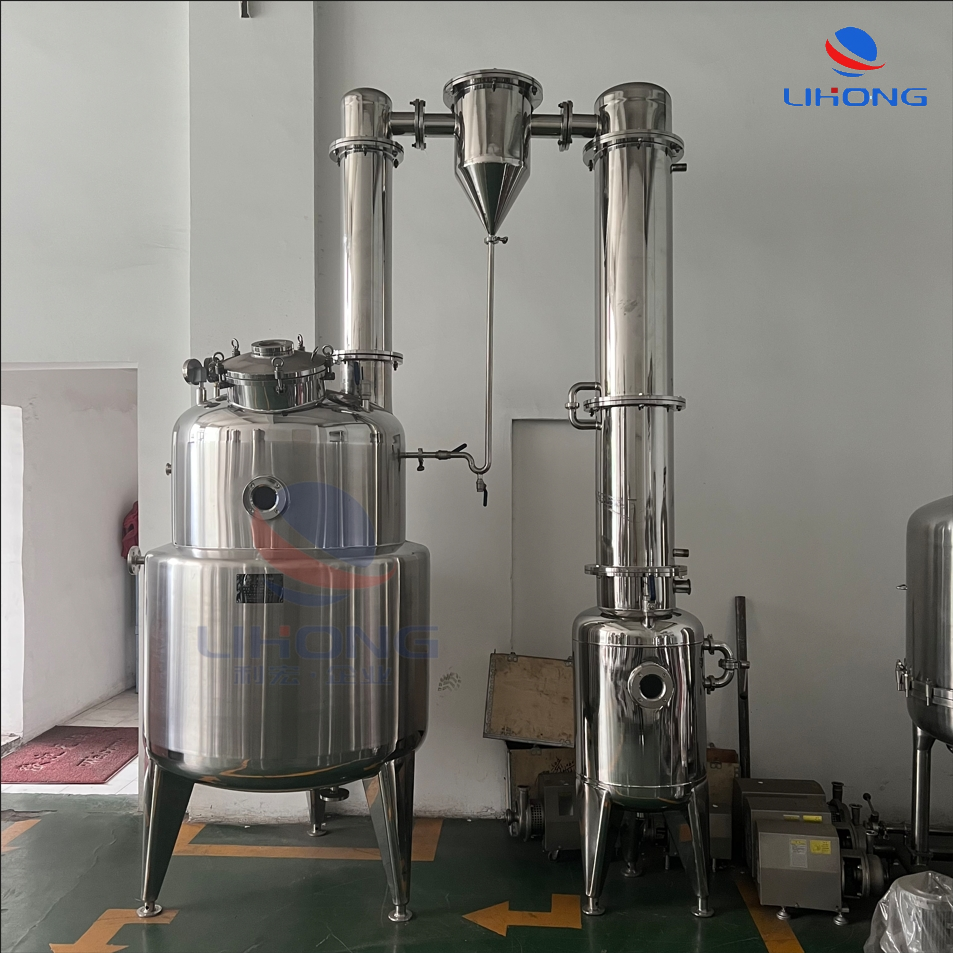

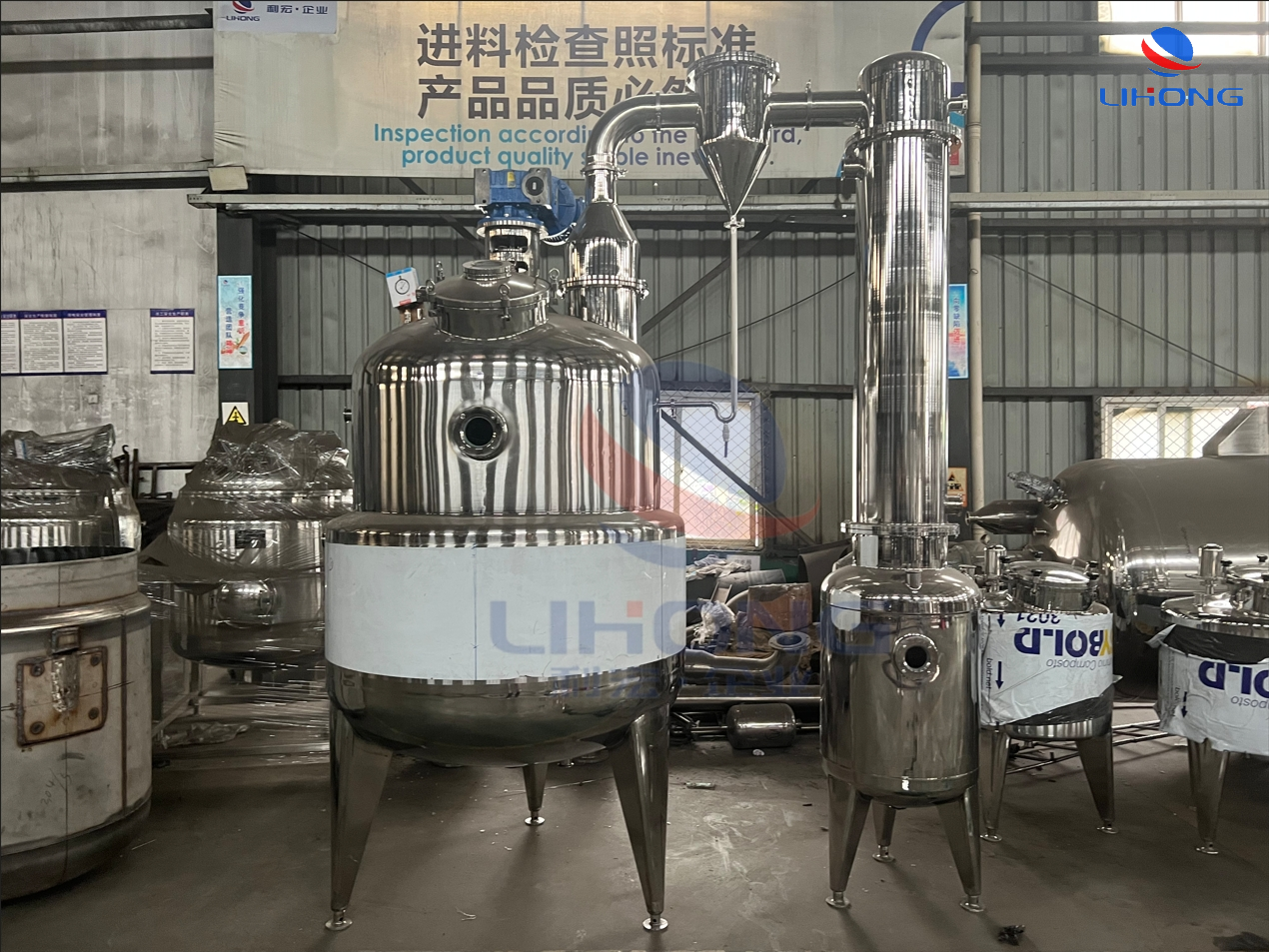

Concentration tank-Zn series. Vacuum reduced pressure concentrated tank.

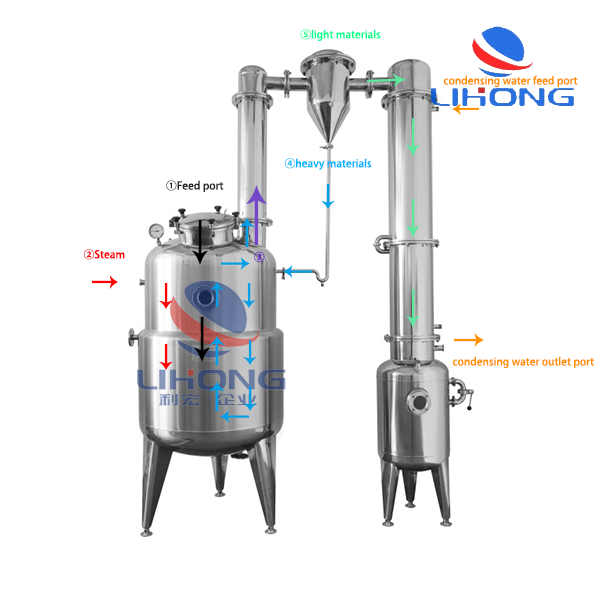

It mainly includes concentrated tanks, condensing tanks, vapor-liquid separators, coolers, and liquid buckets five components.Vacuum reduced pressure concentrated tankIn the jacket structure, the condenser is a tube type, and the cooler is a coil structure. The Zn series vacuum decompression concentration can be used in the concentration of the liquid solution, food, chemical and other industries, and can be used as a recycling alcohol and simple reflow extraction. The pharmaceutical equipment and material contact portions are made of stainless steel, with good corrosion resistance, and meet GMP medical standards.
Vacuum reduced pressure concentrated tankrelatedConcentration equipment：Entrepreneal cycle concentrator、Double efficiency energy condenser、Multifunctional alcohol recovery concentrator、Threular energy conservation concentrator、Spherical vacuum concentrated tank、Concentrator、Route concentrator、Coil vacuum concentrated pot.
| Specification | model | Zn-50 | Zn-100 | Zn-200 | Zn-300 | Zn-500 | Zn-700 | Zn-1000 | Zn-2000 |
| Evaporative ability (kg / h) | 20 | 40 | 60 | 80 | 100 | 130 | 160 | 350 | |
| Steam pressure (MPA) | 0.09 | ||||||||
| Heating area (m_) | 0.4 | 0.6 | 0.8 | 1.1 | 1.2 | 2.0 | 2.5 | 5.5 | |
| Coagulation area (m ') | 1.2 | 1.7 | 2.4 | 3.0 | 3.2 | 3.6 | 4.5 | 14 | |
| Cooling area (m) | 0.25 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.1 | 3 | |
| Spend by liquid tank (L) | 15 | 45 | 60 | 76 | 100 | 125 | 140 | 185 | |
| Energy consumption (kg / h) | 23 | 46 | 70 | 92 | 115 | 150 | 185 | 403 | |
| True (MPA) | -0.08 | ||||||||
| Container categories | Normal pressure | ||||||||
| Equipment weight (kg) | 410 | 470 | 605 | 715 | 862 | 1015 | 1250 | 2600 | |
| Dimensions (mm) | Length | 1200 | 1350 | 1700 | 1800 | 2100 | 2400 | 2390 | 2730 |
| Width | 600 | 750 | 800 | 950 | 1200 | 1300 | 1300 | 1500 | |
| Height | 2200 | 2200 | 2700 | 2850 | 3400 | 3400 | 3720 | 4700 | |
