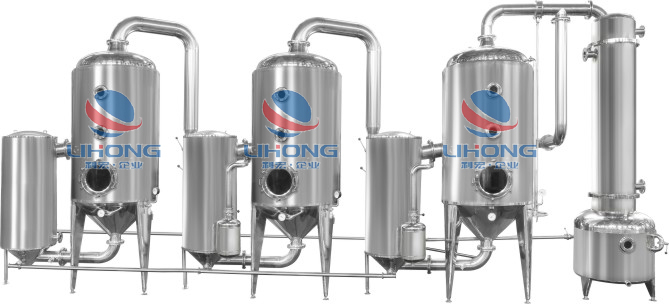

Concentrator-SJN series.Threular energy conservation concentrator.
It belongs to the pharmaceutical equipment, adapted to the concentration of traditional Chinese medicine, western medicine, glucose, starch, monosodium glutamate, dairy milk, chemical and other liquid, especially suitable for low temperature vacuum concentration of thermal materials. Our company has been carefully calculated, and after the improvement is improved, it is more effective than the original concentrate pharmaceutical equipment. Your factory can use the series of technical parameters according to the amount of concentrationConcentrator。
Threular energy conservation concentratorrelatedConcentration equipment：Entrepreneal cycle concentrator、Double efficiency energy condenser、Multifunctional alcohol recovery concentrator、Vacuum reduced pressure concentrated tank、Spherical vacuum concentrated tank、Concentrator、Route concentrator、Coil vacuum concentrated pot.
Product number | SJN-500 | SJN-1000 | SJN-1500 | SJN-2000 | SJN-3000 | |
Evaporation (kg / h water) | 500 | 1000 | 1500 | 2000 | 3000 | |
Steam pressure (MPA) | 0.09 | |||||
Steam consumption (kg / h) | 200 | 400 | 600 | 800 | 1200 | |
Circulating water consumption (t / h) | 5 | 10 | 13 | 15 | 18 | |
Evil temperature (° C) | 80-90 | |||||
Evaporation temperature (° C) | 65-80 | |||||
Evaporation temperature (° C) three effects | 55-65 | |||||
Treatment (MPA) | -0.04 | |||||
Upper (MPA) Effect | -0.06 | |||||
Truth (MPA) | -0.08 | |||||
Size (mm) | Length | 5000 | 6500 | 7000 | 7500 | 7800 |
Width | 1300 | 1500 | 1700 | 2000 | 2000 | |
Height | 3000 | 3300 | 3500 | 4000 | 4300 | |
Container categories | Normal pressure | |||||
Features and benefits:
1. Energy-saving benefits, according to SJN-1000 type calculation, saving about 5,400 tons of steam in one year, 140,000 tons of cooling water, saving more than 130,000 times, reducing costs nearly 200,000 yuan.
2, this concentrator adopts external heating natural cycle and vacuum negative pressure evaporation, has fast evaporation speed, large concentration ratio, can reach 1.4 (general Chinese medicine dipper), no open pot is received.
3, this concentrator is evaporated in three effects, and the secondary steam is repeatedly used, and the energy consumption is about 70% with the energy consumption of the single effect. All investments of this concentrator can be recovered in the energy saving fee.
4, multi-functional operation features: (1) can recover alcohol concentration at around 80 degrees; (2) Three effects can be concentrated in three different materials. (3) Effective, two-effect, three effects, three effects, two-effect, one effect can be repeated and paste. (4) It can be intermittent and continuous feed is concentrated. (5) It can be created once, from the first-effect feed, after the second effect, the third effect has been placed once.
5. This concentrator has a special structure, and the concentrated material has a flavor, and the paste is uniform. Make the material to concentrate in the sealed state, it is not easy to run, reducing pollution, the material is concentrated on the same day, not easy to focus, clean, open the heater, clean, and save labor, one can operate.
6. Both the concentrate and the material contact portion are manufactured by stainless steel SUS304, the heater, and the evaporator are provided with an insulation layer, and the thermal insulation is made of polyurethamin foam, outer surface maturing matt, and meets GMP medical standards.
