TR cam rotor pump

Availability:
Quantity:

TR cam rotor pump -TR cam rotor pump


TR cam rotor pump product description:

TR cam rotor pump, cam rotor multimetric conveying pump is suitable for soft delivery of high viscosity or particulate materials, TR cam rotor pumps are suitable for hygiene and sterile. The treatment of the material is particularly alleviated, the speed of speed (200-600 rpm) is adjustable, and it is also especially suitable for use in a medium that can easily foam in the conveying process and the structure of the structure that can destroy the dielectric substance due to high speed, and can also be used. Suitable for local CIP cleaning and steam disinfection, sanitation levels meet GMP requirements.


TR cam rotor pump application:
· Drugs: Pills, syrup, slurry, emulsion, protein.
· Cosmetics: Faclai, moisturizer, hair care liquid, hair care glue, shampoo, etc.
· Drinks: Beer, Wheat, Fermentation, Concentrated Juice Drink, Soft Drink.
· Dairy: Whey, cream, milk, yogurt, cheese curl, sour cheese.
· Others: Candy Industry, Roasting, Chemical Fields, etc.


Selection instructions:
· Traffic: The intermediate value of the use of technical parameters is suitable.
· Work temperature: -20--150 ° C (highest sterilization temperature 180 ° C)
· Working environment and media: Determine if explosion is needed.
· Working conditions: Cam rotor multimetric conveying pump is self-suction type, speed control optional variable frequency speed and mechanical speed control.
· Pump body: According to the media requirements 316L and 304.
· Honey-sealing materials: Standard rubber seals are silicone rubber. The fluorine rubber, three yuan ethylene, polytetrafluoride, butter is selected depending on the medium. Standard mechanical seals are silicon carbide-carbide, selection graphite-silicon carbide, graphite-ceramics, etc. according to media.
· Import connection method: standard is a quick-loaded clamp, select the tube thread, flange, DIN standard, and the like according to requirements.


TR cam rotor pump technical parameters:


(1) Performance parameters:
1. Traffic: q = 200 liters / hour ~ 48,000 liters / hour
2. Conveying material viscosity range: 0.2cp ~ 500,000 cp
3. The highest pressure of export: 0.8-1.2MPa (during high viscosity)
4. Product temperature from -30 ° C ~ 150 ° C

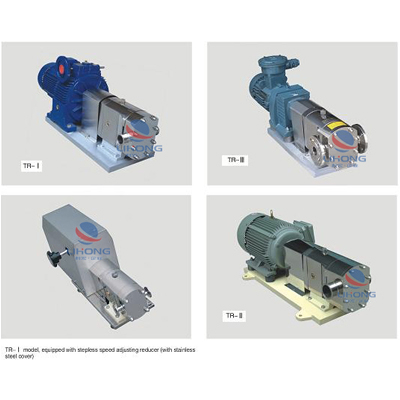

5. Model: TR - i - 1
Tr: Split rotor pump, TRA represents a joint rotor pump.
I: indicates that the non-grade speed control reducer, II indicates that the variable frequency motor, III represents the gear speed reducer.
1: Model




(2) Parameter indicators:


Sequence number
model
Each conversion (L)
Recommended speed control range (rpm)
Correspondence
(L / h)
I, type II application power (kW)
Import and export pipe diameter (mm)
1
TR-I-05
0.028
200-500
330-840
0.55
25
2
TR-I-1
0.04
200-500
480-1200
0.55
25
3
TR-I-2
0.075
200-400
900-1800
0.75
25
4
TR-I-3
0.095
200-400
1140-2280
1.1
32
5
TR-I-4
0.118
200-400
1400-2800
1.5
38
6
TR-I-5
0.18
200-400
2000-4000
2.2
38
7
TR-I-6
0.28
200-400
3000-6000
3
50
8
TR-I-7
0.34
200-400
3600-7200
4
50
9
TR-I-8
0.424
200-400
4500-9000
5.5
50
10
TR-I-9
0.53
200-400
5700-11000
7.5
63.5 (50)
11
TR-I-10
0.7
200-400
7000-14000
7.5
63.5 (50)
12
TR-I-11
1.0
200-400
12000-24000
11
89 (76)
13
TR-I-12
1.6
200-400
19000-38000
11
89
14
TR-I-13
2.0
200-400
24000-48000
15
108
