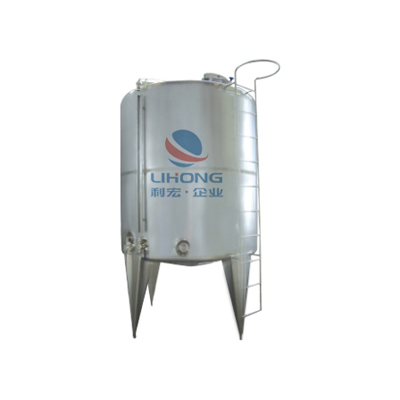

Storage tank
◆ Storage cans can be used to store liquid tanks, hot tanks, etc.
◆ Storage cans apply to food, dairy products, juice beverages, pharmaceutical chemistry and bioengineering, etc.
field.
Storage tank parameters
◆ Storage tank type: single layer double layer
◆ Storage tank material: 304 or 316L
◆ Storage can insulation material: asbestos polyamide foam
◆ Storage tank configuration: human hole, entrance, cleaning ball, respirator ...
◆ Storage tank processing: Inner wall transition section of the cylinder adopts an arc transition, health is not dead angle
capacity Volume (TR) | size Dimension (mm x mm) | Total high (H) TOIAL HEIGHT (mm) | Import extraition caliber Diameterof iniet & outlet (mm) | Insulation Heat Preservation Layer (mm) |
500 | 840x1000 | 2250 | 38 | 60 |
600 | 920x1000 | 2300 | 38 | 60 |
700 | 990x1000 | 2300 | 38 | 60 |
800 | 950x1220 | 2500 | 38 | 60 |
900 | 1010x1220 | 2500 | 38 | 60 |
1000 | 1060x1220 | 2550 | 51 | 60 |
1500 | 1160x1500 | 2850 | 51 | 60 |
2000 | 1340x1500 | 2900 | 51 | 60 |
3000 | 1410x2000 | 3400 | 51 | 60 |
4000 | 1620x2000 | 3450 | 51 | 60 |
5000 | 1810x2000 | 3500 | 51 | 60 |
6000 | 1980x2000 | 3550 | 51 | 60 |
7000 | 1930x2440 | 4000 | 51 | 60 |
8000 | 2060x2440 | 4000 | 51 | 60 |
9O00 | 2180x2440 | 4050 | 51 | 60 |
10000 | 2300x2440 | 4050 | 51 | 60 |
12000 | 2270x3000 | 4600 | 51 | 60 |
15000 | 2530x3000 | 4700 | 51 | 60 |
20000 | 2640x3660 | 5400 | 51 | 60 |
Storage tank
◆ Storage cans can be used to store liquid tanks, hot tanks, etc.
◆ Storage cans apply to food, dairy products, juice beverages, pharmaceutical chemistry and bioengineering, etc.
field.
Storage tank parameters
◆ Storage tank type: single layer double layer
◆ Storage tank material: 304 or 316L
◆ Storage can insulation material: asbestos polyamide foam
◆ Storage tank configuration: human hole, entrance, cleaning ball, respirator ...
◆ Storage tank processing: Inner wall transition section of the cylinder adopts an arc transition, health is not dead angle
capacity Volume (TR) | size Dimension (mm x mm) | Total high (H) TOIAL HEIGHT (mm) | Import extraition caliber Diameterof iniet & outlet (mm) | Insulation Heat Preservation Layer (mm) |
500 | 840x1000 | 2250 | 38 | 60 |
600 | 920x1000 | 2300 | 38 | 60 |
700 | 990x1000 | 2300 | 38 | 60 |
800 | 950x1220 | 2500 | 38 | 60 |
900 | 1010x1220 | 2500 | 38 | 60 |
1000 | 1060x1220 | 2550 | 51 | 60 |
1500 | 1160x1500 | 2850 | 51 | 60 |
2000 | 1340x1500 | 2900 | 51 | 60 |
3000 | 1410x2000 | 3400 | 51 | 60 |
4000 | 1620x2000 | 3450 | 51 | 60 |
5000 | 1810x2000 | 3500 | 51 | 60 |
6000 | 1980x2000 | 3550 | 51 | 60 |
7000 | 1930x2440 | 4000 | 51 | 60 |
8000 | 2060x2440 | 4000 | 51 | 60 |
9O00 | 2180x2440 | 4050 | 51 | 60 |
10000 | 2300x2440 | 4050 | 51 | 60 |
12000 | 2270x3000 | 4600 | 51 | 60 |
15000 | 2530x3000 | 4700 | 51 | 60 |
20000 | 2640x3660 | 5400 | 51 | 60 |
Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.
Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.
Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
1. Are you a factory or trading company?
We are a factory.
2. How long is the warranty period?
One year.
3. What's the main market of your company?
We have customers all over the world.
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc.
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
