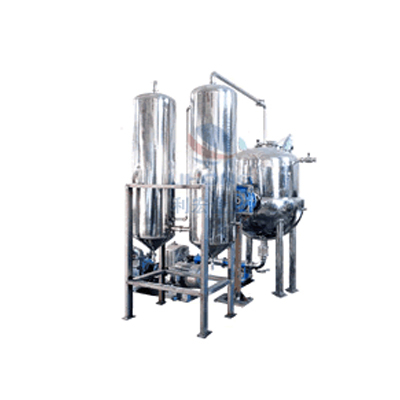

Spherical cross-mixing vacuum concentrated units for thermal sensitive substances (juice, coel, syrup, etc.), low temperature concentration under vacuum conditions, to ensure product quality
The main technical parameters:
Production capacity 300-1000kg / h (water evaporation)
Heating area of 2.3-9 m2.
Delivery in the pot 640-670mmhg
Volume 350-llookg / h
Water consumption 12-39t / h
Use vapor pressure 0.05-0.12MPa
Stirring speed 20-30R / min
Applied water pump 50TSW4-75TSW5 multi-stage pump
Pot in the pot with a diameter of 800mm-lloomm
Structural features:
1. This equipment is heated in the jacket to heat steam, concentrate in the pot in the pot, and simultaneously stir the stirring to strengthen the flow through the stirrer in the lower pot. And guarantee product quality.
2. The main advantage is that the structure is simple, and the operation is easy. Small heating and strong production capacity. The concentrator consists of an upper pot body and a lower pot, and there is a horizontal axis agitator device in the pot, and the motor is driven by a speed of 20-36 r / min, and four pulp leaves on the stirrer. The distance between the pulp leaves and the heating surface is 5-10 mm.
3, there is a device such as a pore glasses, lighting, instrumentation, and vapor separator, and the resulting secondary steam is discharged by two series condenser condensed, and the water ring vacuum pump is vacuum to ensure concentrated pot Reach the predetermined vacuum.
Spherical cross-mixing vacuum concentrated units for thermal sensitive substances (juice, coel, syrup, etc.), low temperature concentration under vacuum conditions, to ensure product quality
The main technical parameters:
Production capacity 300-1000kg / h (water evaporation)
Heating area of 2.3-9 m2.
Delivery in the pot 640-670mmhg
Volume 350-llookg / h
Water consumption 12-39t / h
Use vapor pressure 0.05-0.12MPa
Stirring speed 20-30R / min
Applied water pump 50TSW4-75TSW5 multi-stage pump
Pot in the pot with a diameter of 800mm-lloomm
Structural features:
1. This equipment is heated in the jacket to heat steam, concentrate in the pot in the pot, and simultaneously stir the stirring to strengthen the flow through the stirrer in the lower pot. And guarantee product quality.
2. The main advantage is that the structure is simple, and the operation is easy. Small heating and strong production capacity. The concentrator consists of an upper pot body and a lower pot, and there is a horizontal axis agitator device in the pot, and the motor is driven by a speed of 20-36 r / min, and four pulp leaves on the stirrer. The distance between the pulp leaves and the heating surface is 5-10 mm.
3, there is a device such as a pore glasses, lighting, instrumentation, and vapor separator, and the resulting secondary steam is discharged by two series condenser condensed, and the water ring vacuum pump is vacuum to ensure concentrated pot Reach the predetermined vacuum.
Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.
Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.
Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
1. Are you a factory or trading company?
We are a factory.
2. How long is the warranty period?
One year.
3. What's the main market of your company?
We have customers all over the world.
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc.
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
