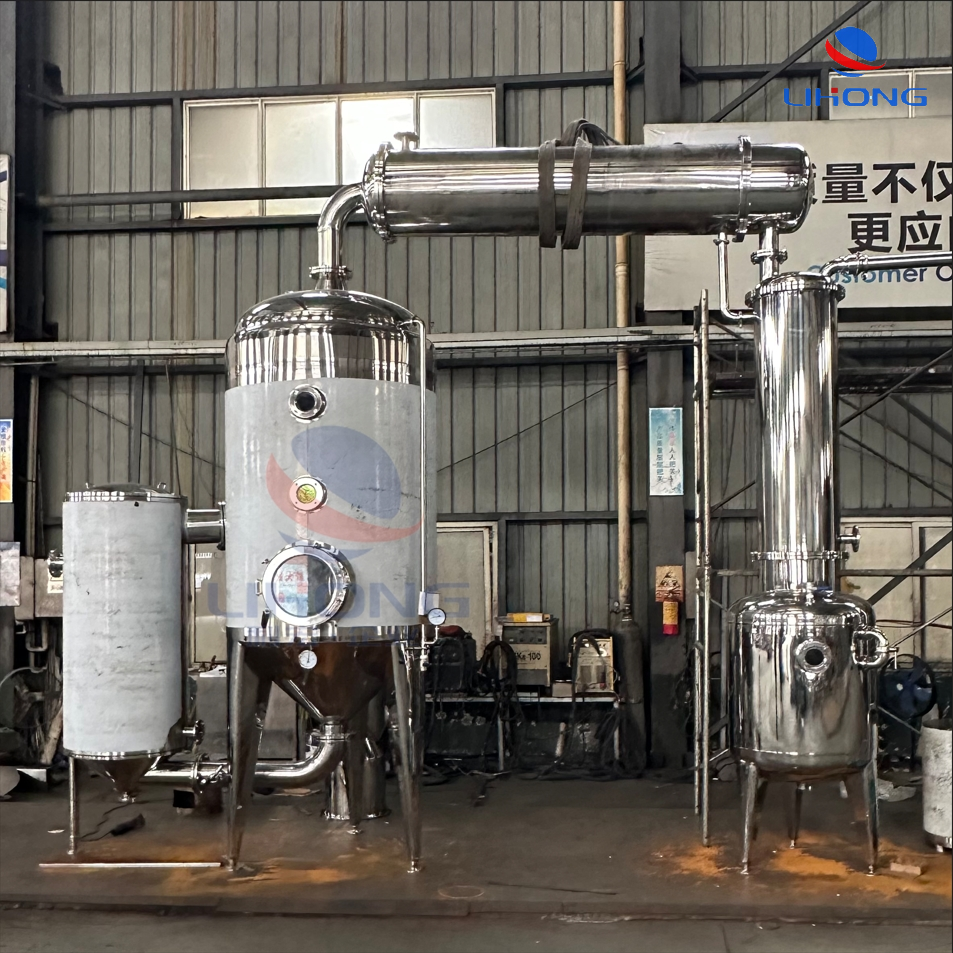

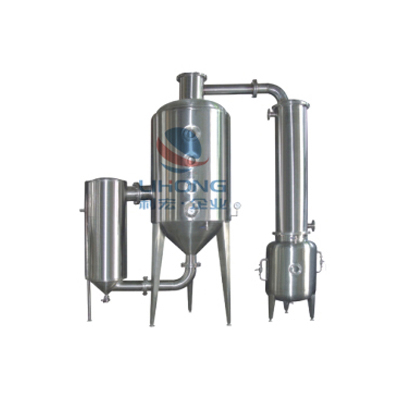

Single-effect outer circulation concentrator


Concentrator-WZ-type series of single-efficient external circulatory concentrates pharmaceutical equipment adapted to traditional Chinese medicine, western medicine, glucose, starch sugar, oral liquid, chemical, food, monosodium glutamate, dairy and other materials and industrial organic solvents (such as alcohol) recovery, The pharmaceutical equipment concentrator is suitable for low temperature vacuum concentration of small batch and thermal material of variety.
Concentrator equipment characteristics and benefits
◆ Alcohol Recycling: High recovery capacity and uses a vacuum concentration process. It has increased by 5-10 times higher than the old types of similar equipment, reducing energy consumption, with a small investment, high recovery efficiency.

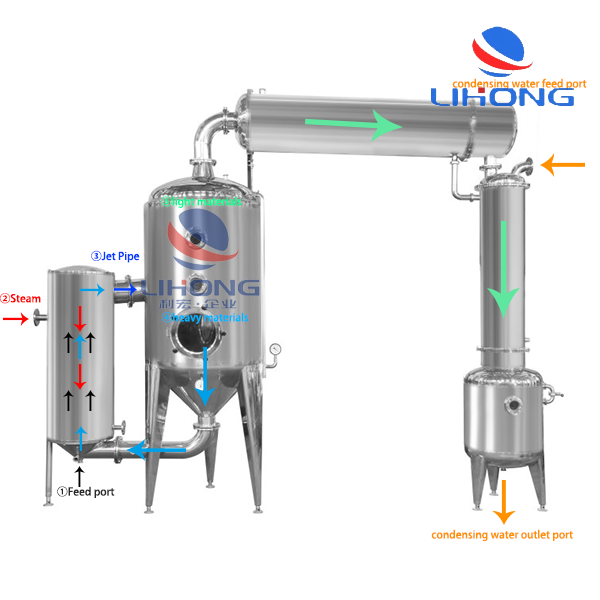

◆ Concentrated liquid: This equipment uses external heating natural cycle and vacuum negative pressure evaporation, the evaporation speed is fast, the concentration is 1.3; the liquid material is concentrated in the full sealing state, the liquid concentrated by the equipment, There is no contamination, and it is characterized by thickness, and it is convenient to clean (open the upper and lower cover of the heater). This device is simple to operate, small in area. The heater and the evaporator are stainless steel insulation structure, and the thermal insulation is made of polyaluminum foam, outer surface matte mattut, and the concentrator meets the GMP medical standards.

Specification modelWZ-500WZ-1000WZ-1500WZ-2000
Evaporation (kg / h)500100015002000
Steam pressure (MPA)0.09
True (MPA)-0.08
Concentration specific gravity1.2-1.3

Size (mm)Width1000120013002350

Container categoriesNormal pressure

Company Information

Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.

Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.

Wenzhou Lihong Machinery Technology Company


Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
