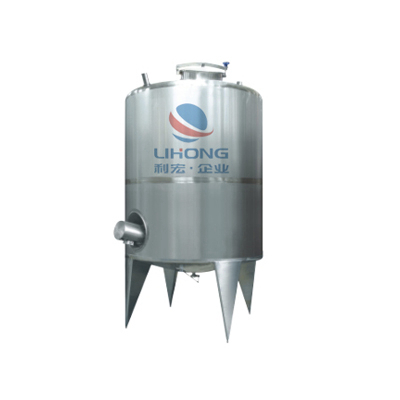

Side mixing tank use
◆ Side mixing tank can be used as a liquid tank, a mixing tank, a temporary tank, a water storage tank, and the like.
◆ Side agitating storage can be used in the fields of food, dairy products, juice beverages, pharmaceutical and chemical and biological engineering.
parameter
◆ Side mixing tank type: single layer double layer
◆ Side mixing tank material: 304 316L
◆ Side mixing tank insulation material: asbestos polyamine foam
◆ Side mixing tank configuration: human hole, stir, entrance, cleaning ball, breathing apparatus ...
◆ Side mixing tank treatment: the inner wall transition section of the cylinder uses an arc transition, and there is no dead angle.
| capacity Volume (LTN) | size Dimension (mmx mm) | Total high (H) TOLAL HEIGHT (mm) | Import extraition caliber AMeterol Iniet & outt (mm) | Insulation HE T Preservation Layer (mm) | Motor Power Motor Poier (kW) | Charge speed Blending speed (Rimin) |
| 1000 | 1O60X1220 | 2550 | 51 | 60 | 0.75 | 960 |
| 1500 | 1160x1500 | 2850 | 51 | 60 | 1.1 | 960 |
| 2000 | 1340x1500 | 2900 | 51 | 60 | 1.1 | 960 |
| 3000 | 1410x2000 | 3400 | 51 | 60 | 1.5 | 960 |
| 4000 | 1620x2000 | 3450 | 51 | 60 | 1.5 | 960 |
| 5000 | 1810x2000 | 3500 | 51 | 60 | 2.2 | 960 |
| 6000 | 1980x2000 | 3550 | 51 | 60 | 2.2 | 960 |
| 7000 | 1930x2440 | 4000 | 51 | 60 | 3 | 960 |
| 8000 | 2060x2440 | 4000 | 51 | 60 | 3 | 960 |
| 9000 | 2180x2440 | 4050 | 51 | 60 | 3 | 960 |
| 10000 | 2300x2440 | 4050 | 51 | 60 | 3 | 960 |
| 12000 | 2270x3000 | 4600 | 51 | 60 | 4 | 960 |
| 15000 | 2530x3000 | 0.47 | 51 | 60 | 4 | 960 |
| 20000 | 2640x3660 | 5400 | 51 | 60 | 5.5 | 960 |
Side mixing tank use
◆ Side mixing tank can be used as a liquid tank, a mixing tank, a temporary tank, a water storage tank, and the like.
◆ Side agitating storage can be used in the fields of food, dairy products, juice beverages, pharmaceutical and chemical and biological engineering.
parameter
◆ Side mixing tank type: single layer double layer
◆ Side mixing tank material: 304 316L
◆ Side mixing tank insulation material: asbestos polyamine foam
◆ Side mixing tank configuration: human hole, stir, entrance, cleaning ball, breathing apparatus ...
◆ Side mixing tank treatment: the inner wall transition section of the cylinder uses an arc transition, and there is no dead angle.
| capacity Volume (LTN) | size Dimension (mmx mm) | Total high (H) TOLAL HEIGHT (mm) | Import extraition caliber AMeterol Iniet & outt (mm) | Insulation HE T Preservation Layer (mm) | Motor Power Motor Poier (kW) | Charge speed Blending speed (Rimin) |
| 1000 | 1O60X1220 | 2550 | 51 | 60 | 0.75 | 960 |
| 1500 | 1160x1500 | 2850 | 51 | 60 | 1.1 | 960 |
| 2000 | 1340x1500 | 2900 | 51 | 60 | 1.1 | 960 |
| 3000 | 1410x2000 | 3400 | 51 | 60 | 1.5 | 960 |
| 4000 | 1620x2000 | 3450 | 51 | 60 | 1.5 | 960 |
| 5000 | 1810x2000 | 3500 | 51 | 60 | 2.2 | 960 |
| 6000 | 1980x2000 | 3550 | 51 | 60 | 2.2 | 960 |
| 7000 | 1930x2440 | 4000 | 51 | 60 | 3 | 960 |
| 8000 | 2060x2440 | 4000 | 51 | 60 | 3 | 960 |
| 9000 | 2180x2440 | 4050 | 51 | 60 | 3 | 960 |
| 10000 | 2300x2440 | 4050 | 51 | 60 | 3 | 960 |
| 12000 | 2270x3000 | 4600 | 51 | 60 | 4 | 960 |
| 15000 | 2530x3000 | 0.47 | 51 | 60 | 4 | 960 |
| 20000 | 2640x3660 | 5400 | 51 | 60 | 5.5 | 960 |
