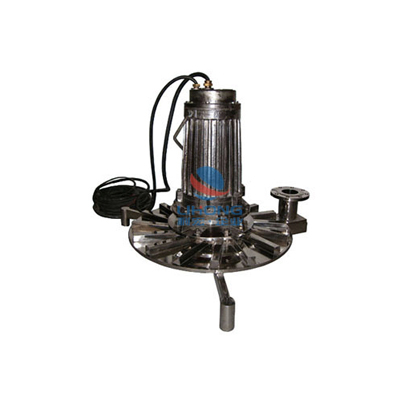

AWT Series self-suction aerator can be used for oxygenation and mixing of sewage aerobic treatment, in which a pump, blower, gas-liquid mixing enhancer is integrally, completely underwater, can be placed at the bottom of the sewage aeration cell, It can also be fixed to water surface buoy. It consists mainly of a star impeller and an air tube surrounding the impeller and a vent. The impeller rotates to cause vacuum in the stator, and automatically inhaled air through the air pipe, water and air enter the impeller through the inlet of the rotor and the stator, and is sufficiently mixed in the impeller, and the gas is dispersed into small air bubbles of about 100 microns in diameter to form huge The gas-liquid area is achieved to achieve high efficiency oxygen and mix.
Self-suction aerators are suitable for multiple links in sewage treatment, such as pre-supply gas, active sludge treatment, stable sludge treatment, gas flot, neutralization, ozone treatment, oxide pond, liquid mix, etc., but mainly The use is high efficiency oxygen and mixed mass media. Features of the AWT series self-suction aerator:
. Automatic underwater, save gas supply equipment, antifreeze, and take a shower.
. The gas-liquid exposure is large, the oxygen utilization rate is high, the sewage treatment is good, and the energy saving effect is obvious.
. The mixing effect is good, and the sewage pool has no precipitate.
. Not easy to block, easy to install and maintain.
It sets the pump, blower, gas-liquid mixing reinforcerator, completely underwater, can be placed at the bottom of the sewage aeration tank, and can also be fixed to water surface buoy. It consists mainly of a star impeller and an air tube surrounding the impeller and a vent. The impeller rotates to cause vacuum in the stator, and automatically inhaled air through the air pipe, water and air enter the impeller through the inlet of the rotor and the stator, and is sufficiently mixed in the impeller, and the gas is dispersed into small air bubbles of about 100 microns in diameter to form huge The gas-liquid area is achieved to achieve high efficiency oxygen and mix.
| technical parameter | ||||||||
| 型 号 | AWT-1 | AWT-2 | AWT-3 | AWT-4 | AWT-5 | AWT-6 | AWT-7 | AWT-8 |
| Motor Power(kW) | 3 | 4 | 6 | 11 | 25 | 30.5 | 44 | 55 |
| 转 速(rpm) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Ⅰ 型 池 直 径 | ||||||||
| φ (m) | 2 | 2.1 | 2.5 | 3.5 | 4 | 4.5 | 5 | 5.5 |
| IType tank transmissions rate (kgo2/ h） | ||||||||
| 自 吸 气 | 3.3 | 4.1 | 9.5 | 19.5 | 29.5 | 42.1 | 63.3 | 88.6 |
| External pressure supply | 32.1 | 43.5 | 58.3 | 77.9 | 122.5 | |||
| Ⅱ 型 池 直 径 | ||||||||
| φ (m) | 6 | 6.5 | 7.5 | 9.5 | 10.5 | 11.5 | 13.5 | 15.5 |
| Type II type poet oxygen transfer rate (kgo2/ h） | ||||||||
| 自 吸 气 | 2.3 | 2.6 | 5.7 | 13.7 | 20.5 | 28.8 | 42.5 | 62.3 |
| External pressure supply | 22.5 | 30.5 | 41 | 60 | 79 | |||
AWT Series self-suction aerator can be used for oxygenation and mixing of sewage aerobic treatment, in which a pump, blower, gas-liquid mixing enhancer is integrally, completely underwater, can be placed at the bottom of the sewage aeration cell, It can also be fixed to water surface buoy. It consists mainly of a star impeller and an air tube surrounding the impeller and a vent. The impeller rotates to cause vacuum in the stator, and automatically inhaled air through the air pipe, water and air enter the impeller through the inlet of the rotor and the stator, and is sufficiently mixed in the impeller, and the gas is dispersed into small air bubbles of about 100 microns in diameter to form huge The gas-liquid area is achieved to achieve high efficiency oxygen and mix.
Self-suction aerators are suitable for multiple links in sewage treatment, such as pre-supply gas, active sludge treatment, stable sludge treatment, gas flot, neutralization, ozone treatment, oxide pond, liquid mix, etc., but mainly The use is high efficiency oxygen and mixed mass media. Features of the AWT series self-suction aerator:
. Automatic underwater, save gas supply equipment, antifreeze, and take a shower.
. The gas-liquid exposure is large, the oxygen utilization rate is high, the sewage treatment is good, and the energy saving effect is obvious.
. The mixing effect is good, and the sewage pool has no precipitate.
. Not easy to block, easy to install and maintain.
It sets the pump, blower, gas-liquid mixing reinforcerator, completely underwater, can be placed at the bottom of the sewage aeration tank, and can also be fixed to water surface buoy. It consists mainly of a star impeller and an air tube surrounding the impeller and a vent. The impeller rotates to cause vacuum in the stator, and automatically inhaled air through the air pipe, water and air enter the impeller through the inlet of the rotor and the stator, and is sufficiently mixed in the impeller, and the gas is dispersed into small air bubbles of about 100 microns in diameter to form huge The gas-liquid area is achieved to achieve high efficiency oxygen and mix.
| technical parameter | ||||||||
| 型 号 | AWT-1 | AWT-2 | AWT-3 | AWT-4 | AWT-5 | AWT-6 | AWT-7 | AWT-8 |
| Motor Power(kW) | 3 | 4 | 6 | 11 | 25 | 30.5 | 44 | 55 |
| 转 速(rpm) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Ⅰ 型 池 直 径 | ||||||||
| φ (m) | 2 | 2.1 | 2.5 | 3.5 | 4 | 4.5 | 5 | 5.5 |
| IType tank transmissions rate (kgo2/ h） | ||||||||
| 自 吸 气 | 3.3 | 4.1 | 9.5 | 19.5 | 29.5 | 42.1 | 63.3 | 88.6 |
| External pressure supply | 32.1 | 43.5 | 58.3 | 77.9 | 122.5 | |||
| Ⅱ 型 池 直 径 | ||||||||
| φ (m) | 6 | 6.5 | 7.5 | 9.5 | 10.5 | 11.5 | 13.5 | 15.5 |
| Type II type poet oxygen transfer rate (kgo2/ h） | ||||||||
| 自 吸 气 | 2.3 | 2.6 | 5.7 | 13.7 | 20.5 | 28.8 | 42.5 | 62.3 |
| External pressure supply | 22.5 | 30.5 | 41 | 60 | 79 | |||
