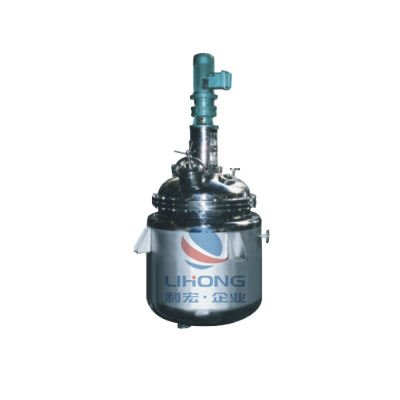

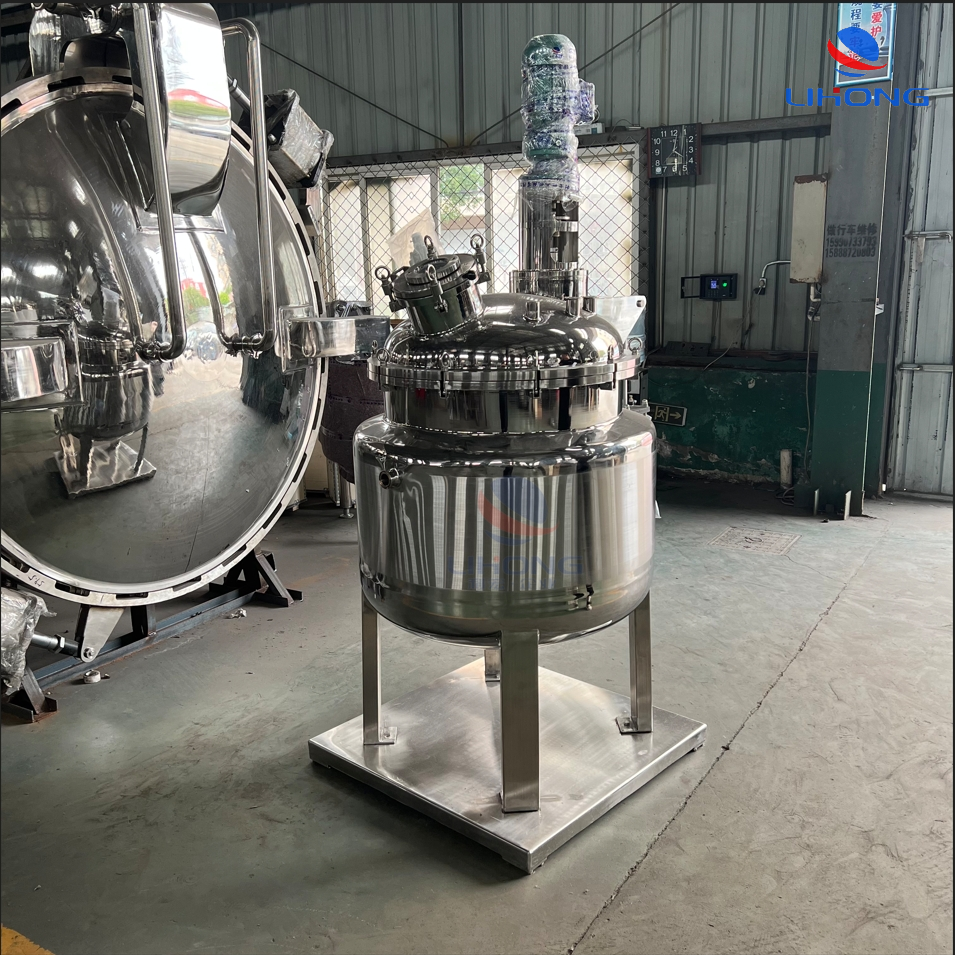

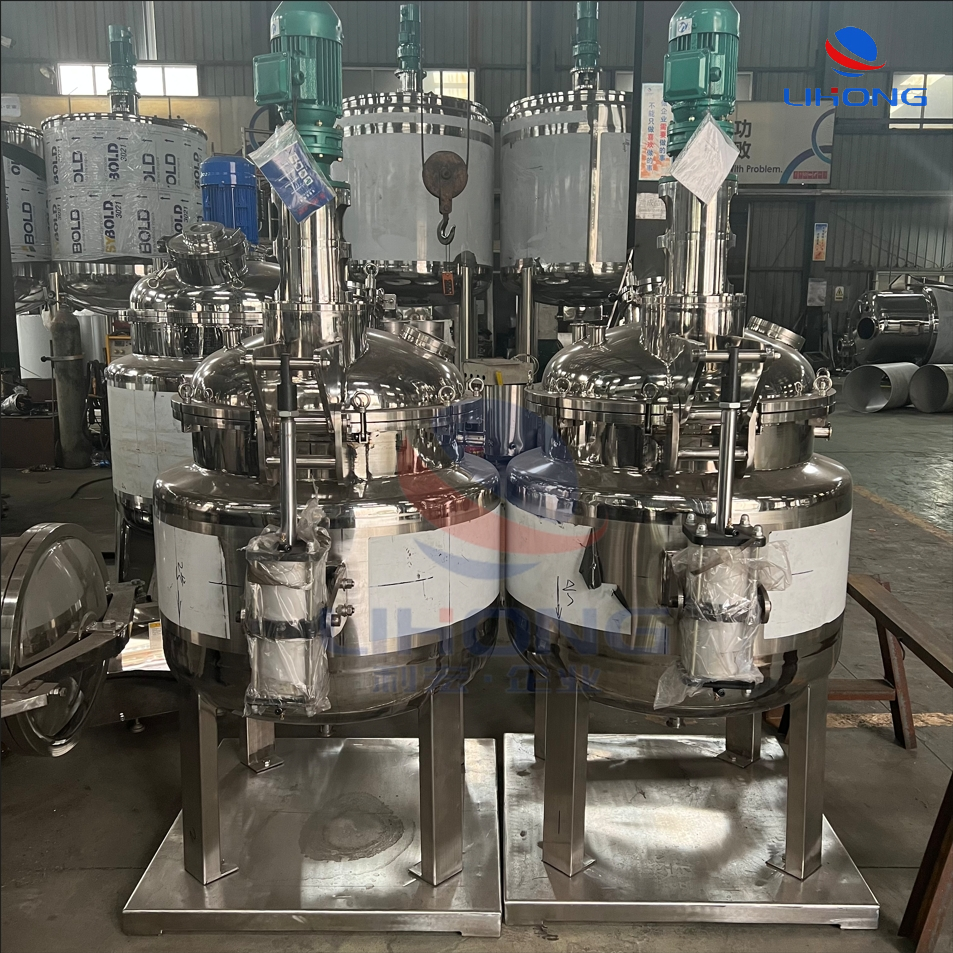

The reactor strictly follows the \"National Quality Management Specification\" GMP General (1998 Revised Edition) No. 31, 32, according to GB150-98 \"Steel Pressure Vessel\", JB / T4735-97 \"Steel Welding Standard container requirements for design, manufacturing and acceptance.
◆ Container insulation materials use high temperature resistance, anti-aging polyamine foam or pearl cotton.
◆ The interface adopts the international general standard ISO fast-loaded chuck type, the liner is made with imported stainless steel SUS304 (or SUS316L), inner surface mirror polishing to Ra≤0.28μm, exterior surface, mirror, sand blasting or cold rolling Light, in line with GMP medical standards.
◆ The seal of the stirrer is used in an inlet hygiene-level mechanical stirring seal or magnetic full sealing stirring apparatus, and the stirring speed can be optionally optionally.
◆ The tube is provided with a liquid level count (static pressure, capacitive, unconflexible, ultrasonic, glass tube), air respirator, thermometer (digital explicit or dial), CIP cleaning port, view mirror , Explosion-proof light (visual view lamp integration), SIP sterilization, into and out of liquid port and hygiene, etc.
◆ Volume 100L-10000L and other specifications can also be designed, manufactured according to customer needs.
◆ Randomly accompanied by GMP verification information (including materials report, foreign purchase part certificate, verification form, etc.)
Nominal volume | Working pressure (MPA) | Work temperature (° C) | Stir speed (rotation / min) | H (mm) | H1 (mm) | D (mm) | D1 (mm) | H (mm) |
100 | 0.25 | 100 | 0-720 | 1750 | 450 | 750 | 550 | 300 |
200 | 0.25 | 100 | 0-720 | 1950 | 600 | 850 | 650 | 300 |
600 | 0.25 | 100 | 0-720 | 2500 | 1000 | 1100 | 900 | 350 |
1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | 1300 | 1100 | 350 |
2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | 1500 | 1300 | 350 |
3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | 1700 | 1500 | 350 |
5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | 2000 | 1800 | 400 |
10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | 2500 | 2300 | 400 |
The reactor strictly follows the \"National Quality Management Specification\" GMP General (1998 Revised Edition) No. 31, 32, according to GB150-98 \"Steel Pressure Vessel\", JB / T4735-97 \"Steel Welding Standard container requirements for design, manufacturing and acceptance.
◆ Container insulation materials use high temperature resistance, anti-aging polyamine foam or pearl cotton.
◆ The interface adopts the international general standard ISO fast-loaded chuck type, the liner is made with imported stainless steel SUS304 (or SUS316L), inner surface mirror polishing to Ra≤0.28μm, exterior surface, mirror, sand blasting or cold rolling Light, in line with GMP medical standards.
◆ The seal of the stirrer is used in an inlet hygiene-level mechanical stirring seal or magnetic full sealing stirring apparatus, and the stirring speed can be optionally optionally.
◆ The tube is provided with a liquid level count (static pressure, capacitive, unconflexible, ultrasonic, glass tube), air respirator, thermometer (digital explicit or dial), CIP cleaning port, view mirror , Explosion-proof light (visual view lamp integration), SIP sterilization, into and out of liquid port and hygiene, etc.
◆ Volume 100L-10000L and other specifications can also be designed, manufactured according to customer needs.
◆ Randomly accompanied by GMP verification information (including materials report, foreign purchase part certificate, verification form, etc.)
Nominal volume | Working pressure (MPA) | Work temperature (° C) | Stir speed (rotation / min) | H (mm) | H1 (mm) | D (mm) | D1 (mm) | H (mm) |
100 | 0.25 | 100 | 0-720 | 1750 | 450 | 750 | 550 | 300 |
200 | 0.25 | 100 | 0-720 | 1950 | 600 | 850 | 650 | 300 |
600 | 0.25 | 100 | 0-720 | 2500 | 1000 | 1100 | 900 | 350 |
1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | 1300 | 1100 | 350 |
2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | 1500 | 1300 | 350 |
3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | 1700 | 1500 | 350 |
5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | 2000 | 1800 | 400 |
10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | 2500 | 2300 | 400 |
Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.
Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.
Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
