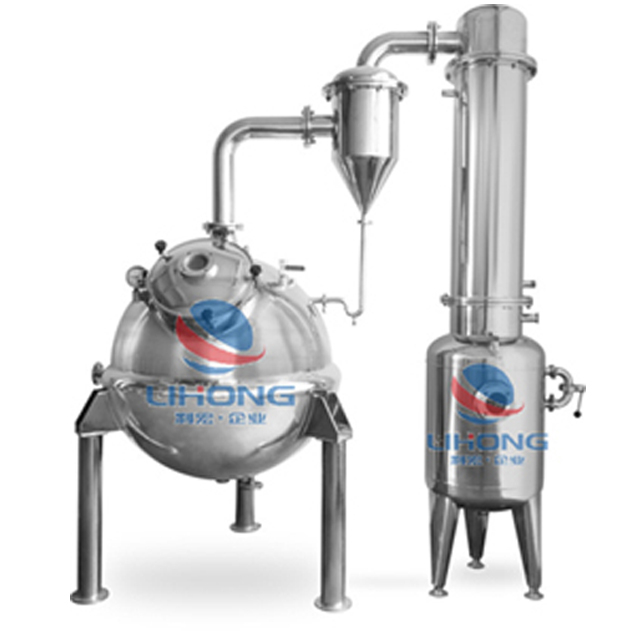

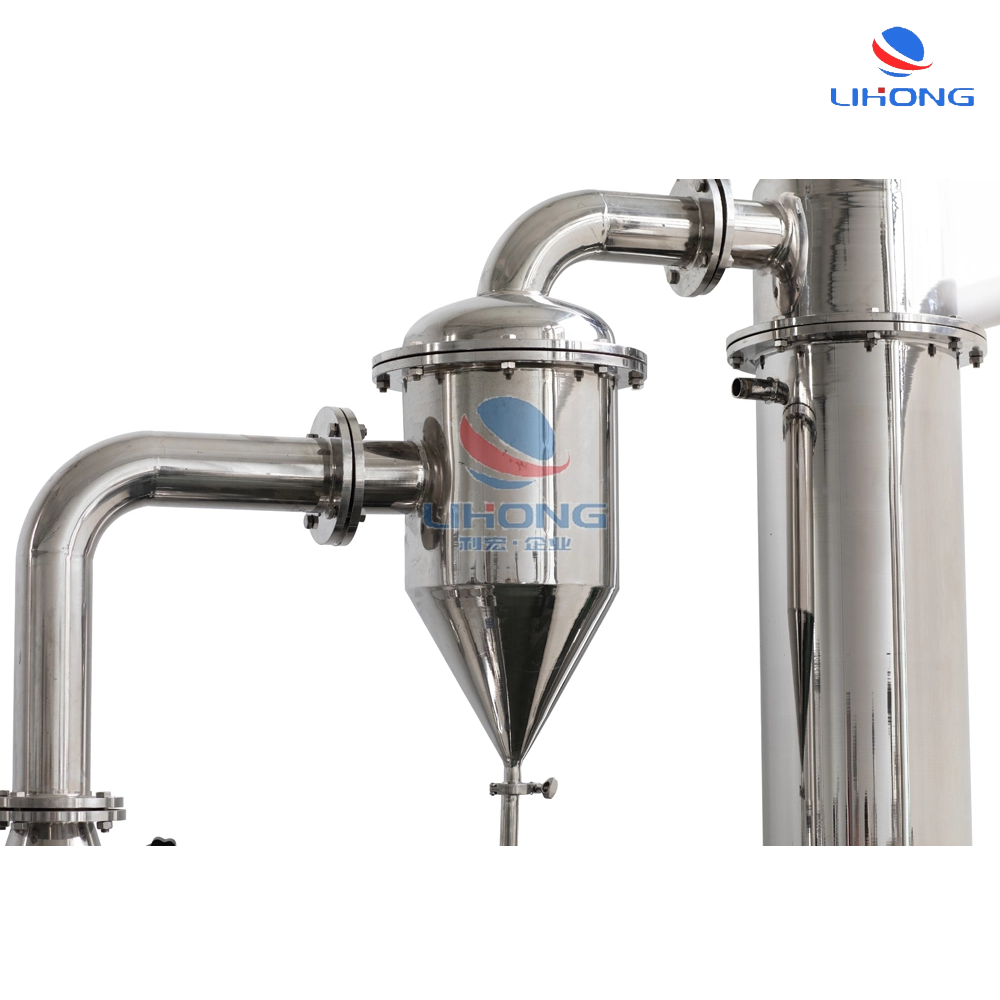

The spherical concentrated tank consists mainly of the concentrated tank body, the condenser, a vapor separator, and the liquid tub, which can be used for the concentration of the liquid, food, chemical and other industries to concentrate, distillation and organic solvent recovery. Since the decompression is concentrated, the concentration time is short and the effective ingredients of the thermal material are not destroyed. Both the equipment and the material contact portion are manufactured in stainless steel SUS304 (or SUS316L), with good corrosion resistance, durable, and meet GMP medical standards.
Model Specification Model and Specification | Qn-300 | Qn-500 | Qn-700 | Qn-1000 | |
Swallow (kg / h) | 70 | 120 | 145 | 195 | |
Nominal volume L) | 300L | 500L | 700L | 1000L | |
Yanqi Pressure (MPA) | 0.09 | ||||
True OPA) | -0.08 | ||||
Heating area m) | 1.3 | 1.5 | 2 | 2.8 | |
Coagulation area (m) | 2.4 | 3 | 3.5 | 4 | |
Equipment weight (kg) | 380 | 450 | 630 | 950 | |
Length | 1900 | 2030 | 2100 | 2335 | |
Size (NRM) | Width | 1100 | 1200 | 1300 | 1520 |
Height | 2300 | 2500 | 2600 | 2765 |
The spherical concentrated tank consists mainly of the concentrated tank body, the condenser, a vapor separator, and the liquid tub, which can be used for the concentration of the liquid, food, chemical and other industries to concentrate, distillation and organic solvent recovery. Since the decompression is concentrated, the concentration time is short and the effective ingredients of the thermal material are not destroyed. Both the equipment and the material contact portion are manufactured in stainless steel SUS304 (or SUS316L), with good corrosion resistance, durable, and meet GMP medical standards.
Model Specification Model and Specification | Qn-300 | Qn-500 | Qn-700 | Qn-1000 | |
Swallow (kg / h) | 70 | 120 | 145 | 195 | |
Nominal volume L) | 300L | 500L | 700L | 1000L | |
Yanqi Pressure (MPA) | 0.09 | ||||
True OPA) | -0.08 | ||||
Heating area m) | 1.3 | 1.5 | 2 | 2.8 | |
Coagulation area (m) | 2.4 | 3 | 3.5 | 4 | |
Equipment weight (kg) | 380 | 450 | 630 | 950 | |
Length | 1900 | 2030 | 2100 | 2335 | |
Size (NRM) | Width | 1100 | 1200 | 1300 | 1520 |
Height | 2300 | 2500 | 2600 | 2765 |
Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.
Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.
Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
