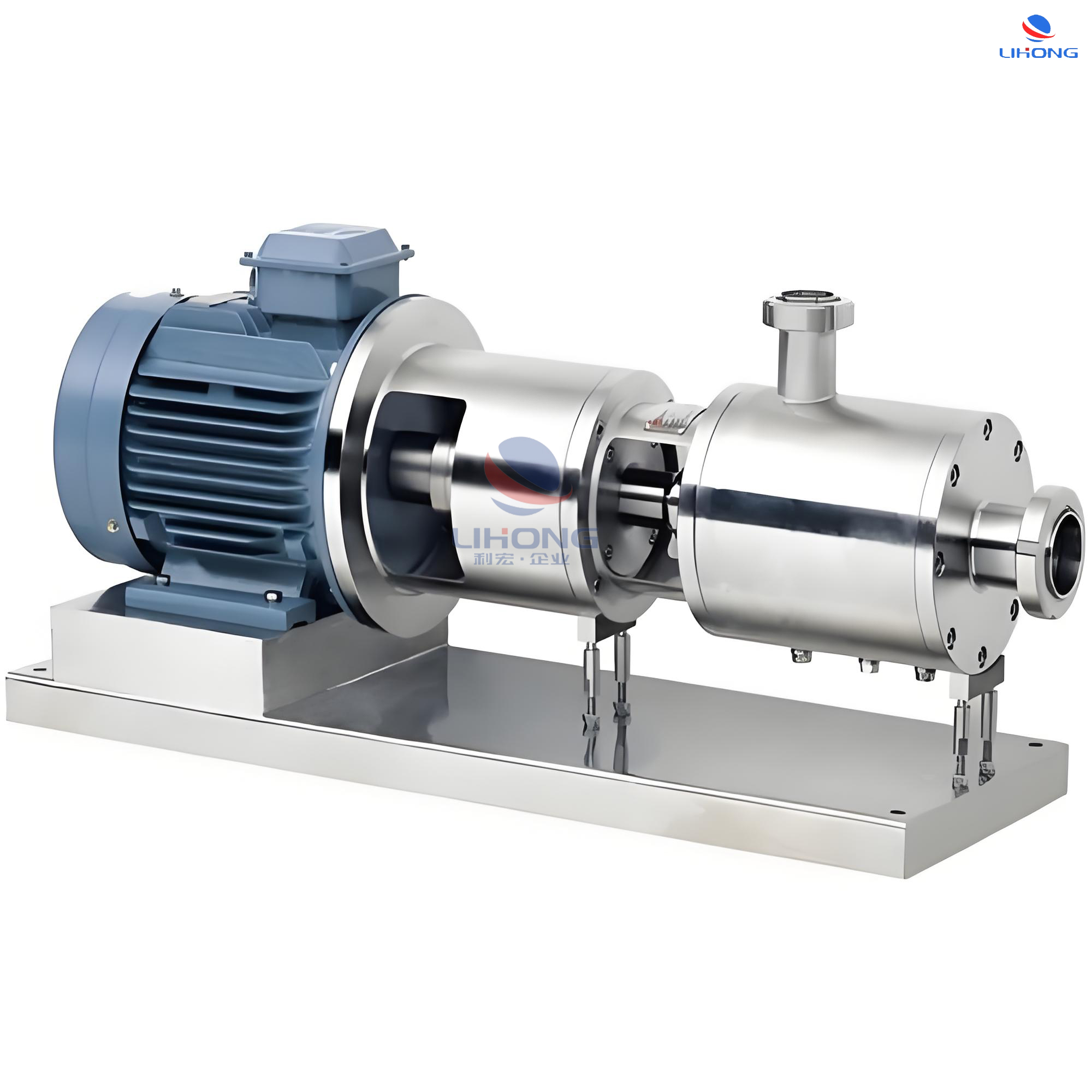

Emulsified pump - multi-stage emulsified pump, its working cavity consists of three-stage rotor, stator total 12-layer, multi-stage emulsified pump material is scattered, fine, emulsified step by step by rotor, stator, improved production efficiency, multi-stage emulsified pump It is a high-efficiency ultra-fine homogeneous pump integrating mix, dispersion, breaking, dissolution, fine, decomposition, homogenesis, emulsification, and transport, and multi-level emulsion pumps further simplify and produce efficiency. A large increased, product quality is significantly improved, an ideal product that replaces sand mills, ball mills, colloid mills. The sealing device of the emulsified pump product uses a double end surface or a single-ended mechanical seal according to different characteristics of different materials, and the multi-stage emulsified pump can be configured in accordance with the user needs.
Multi-stage emulsified pump products are suitable for large, medium-batch continuity online production or cycle treatment production process.
SS 304 or ss316l
Parameter:
Multi-stage emulsified pump tube line high shear dispersion emulsifier is a high-performance device for continuous production or circulation to handle fine materials. Inside the chamber of the narrow space, a multi-layered, rotor, rotor equipped with 1-3 sets of occasional occasion At high speed under driving, a strong axial suction is generated to inhale the material into the cavity. Dispersion, shearing, emulsion treatment in the shortest time, and the particle size distribution range also narrows, thereby obtaining a fine long-term stable product.
Multi-stage emulsified pump tube line high shear dispersion emulsifier characteristics:
1. The amount of handling is large, suitable for industrialization and continuous production
2. The particle size distribution is narrow and uniform
3. Save time, efficient, energy consumption
4. Low noise, smooth operation
5. Eliminate the quality difference between batch production
6. No dead end, 100% of the material is cut by dispersion
7. Has a short distance, low row conveying function
8. Simple use, easy maintenance
9. Automated control
Multi-level emulsified pump production process:
SS 304 or ss316l
Parameter:
| model | power KW | Rotating speed R / min | flow m 3/ h | import DN | exit DN | Outlet pressure |
| LHRHP3 / 100 | 4 | 2900 | 5 | 40 | 32 | 0.15 |
| LHRHP3 / 140 | 7.5 | 2900 | 7 | 40 | 32 | 0.2 |
| LHRHP3 / 165 | 15 | 2900 | 12 | 50 | 40 | 0.3 |
| LHRHP3 / 185 | 22 | 2900 | 20 | 65 | 50 | 0.4 |
| LHRHP3 / 200 | 37 | 2900 | 30 | 65 | 50 | 0.5 |
| LHRHP3 / 220 | 45 | 2900 | 40 | 80 | 65 | 0.5 |
| LHRHP3 / 240 | 75 | 2900 | 60 | 100 | 80 | 0.6 |
| LHRHP3 / 260 | 110 | 2900 | 100 | 125 | 100 | 0.6 |
Emulsified pump - multi-stage emulsified pump, its working cavity consists of three-stage rotor, stator total 12-layer, multi-stage emulsified pump material is scattered, fine, emulsified step by step by rotor, stator, improved production efficiency, multi-stage emulsified pump It is a high-efficiency ultra-fine homogeneous pump integrating mix, dispersion, breaking, dissolution, fine, decomposition, homogenesis, emulsification, and transport, and multi-level emulsion pumps further simplify and produce efficiency. A large increased, product quality is significantly improved, an ideal product that replaces sand mills, ball mills, colloid mills. The sealing device of the emulsified pump product uses a double end surface or a single-ended mechanical seal according to different characteristics of different materials, and the multi-stage emulsified pump can be configured in accordance with the user needs.
Multi-stage emulsified pump products are suitable for large, medium-batch continuity online production or cycle treatment production process.
SS 304 or ss316l
Parameter:
Multi-stage emulsified pump tube line high shear dispersion emulsifier is a high-performance device for continuous production or circulation to handle fine materials. Inside the chamber of the narrow space, a multi-layered, rotor, rotor equipped with 1-3 sets of occasional occasion At high speed under driving, a strong axial suction is generated to inhale the material into the cavity. Dispersion, shearing, emulsion treatment in the shortest time, and the particle size distribution range also narrows, thereby obtaining a fine long-term stable product.
Multi-stage emulsified pump tube line high shear dispersion emulsifier characteristics:
1. The amount of handling is large, suitable for industrialization and continuous production
2. The particle size distribution is narrow and uniform
3. Save time, efficient, energy consumption
4. Low noise, smooth operation
5. Eliminate the quality difference between batch production
6. No dead end, 100% of the material is cut by dispersion
7. Has a short distance, low row conveying function
8. Simple use, easy maintenance
9. Automated control
Multi-level emulsified pump production process:
SS 304 or ss316l
Parameter:
| model | power KW | Rotating speed R / min | flow m 3/ h | import DN | exit DN | Outlet pressure |
| LHRHP3 / 100 | 4 | 2900 | 5 | 40 | 32 | 0.15 |
| LHRHP3 / 140 | 7.5 | 2900 | 7 | 40 | 32 | 0.2 |
| LHRHP3 / 165 | 15 | 2900 | 12 | 50 | 40 | 0.3 |
| LHRHP3 / 185 | 22 | 2900 | 20 | 65 | 50 | 0.4 |
| LHRHP3 / 200 | 37 | 2900 | 30 | 65 | 50 | 0.5 |
| LHRHP3 / 220 | 45 | 2900 | 40 | 80 | 65 | 0.5 |
| LHRHP3 / 240 | 75 | 2900 | 60 | 100 | 80 | 0.6 |
| LHRHP3 / 260 | 110 | 2900 | 100 | 125 | 100 | 0.6 |
