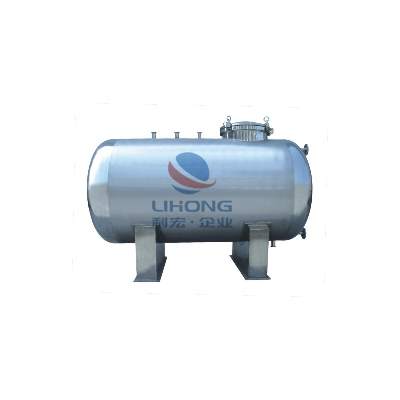

◆ Horizontal insulation storage tank type: horizontal
The horizontal insulation storage tank strictly follows the \"Pharmaceutical Production Quality Management Specification\" GMP General (1998 Revised Edition) No. 31, 32 Requirements, horizontal insulation storage tank according to GB150-98 \"Steel Pressure Vessel\", JB / T4735-97 \"Steel welding normal pressure container\" requires design and manufacturing acceptance.
◆ The container insulation material of the horizontal insulation storage tank is high temperature resistant, anti-aging polyamolite foam or pearl cotton.
◆ The interface of the horizontal insulation storage tank adopts the international general standard ISO fast-loaded chuck type, the liner is made of imported stainless steel SUS304 (or SUS316L), the inner surface mirror polished to Ra ≤ 0.28μm, the outer surface shining, mirror, spray Sand or cold rolled raw matt, in line with GMP medical standards.
◆ The mouth is provided with a liquid level count (static pressure, capacitive, unconflexible, ultrasonic, glass tube), air respirator, thermometer (digital explicit or dial), CIP cleaning port, SIP destroy The bacteria, into and out of liquid port and hygiene, etc.
◆ The volume has a total of 1000L-30000L and other specifications, or it can be designed according to the actual needs of customers.
◆ Randomly accompanied the GMP verification data (including materials report, foreign purchase certificate, verification form, etc.).
Horizontal insulation storage tanks series: alcohol sedimentation can, reactor, seepage tank, crystalline can, seed can, stainless steel liquid tank, storage tank, distilled water storage tank, fermenter (seed can)
| Nominal volume | Working pressure (MPa) | Work temperature (° C) | L (mm) | L1 (mm) | D (mm) | D1 (mm) | H (mm) |
| 1000L | 0.25 | 100 | 1950 | 1500 | 1050 | 900 | 300 |
| 2000L | 0.25 | 100 | 2300 | 1800 | 1400 | 1200 | 300 |
| 3000L | 0.25 | 100 | 2600 | 2000 | 1600 | 1400 | 300 |
| 5000L | 0.25 | 100 | 3250 | 2500 | 1800 | 1600 | 300 |
| 8000L | 0.25 | 100 | 4300 | 3500 | 1900 | 1700 | 300 |
| 10000L | 0.25 | 100 | 4700 | 3800 | 2100 | 1900 | 350 |
| 20000L | 0.25 | 100 | 5650 | 4500 | 2600 | 2400 | 350 |
| 30000L | 0.25 | 100 | 6250 | 4800 | 3000 | 2800 | 350 |
