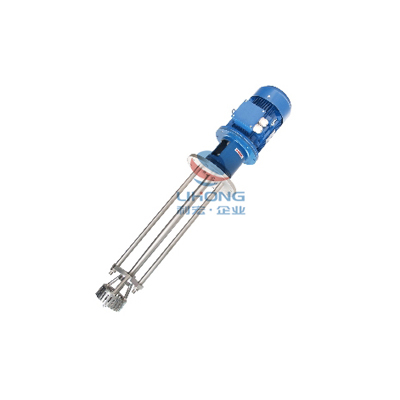

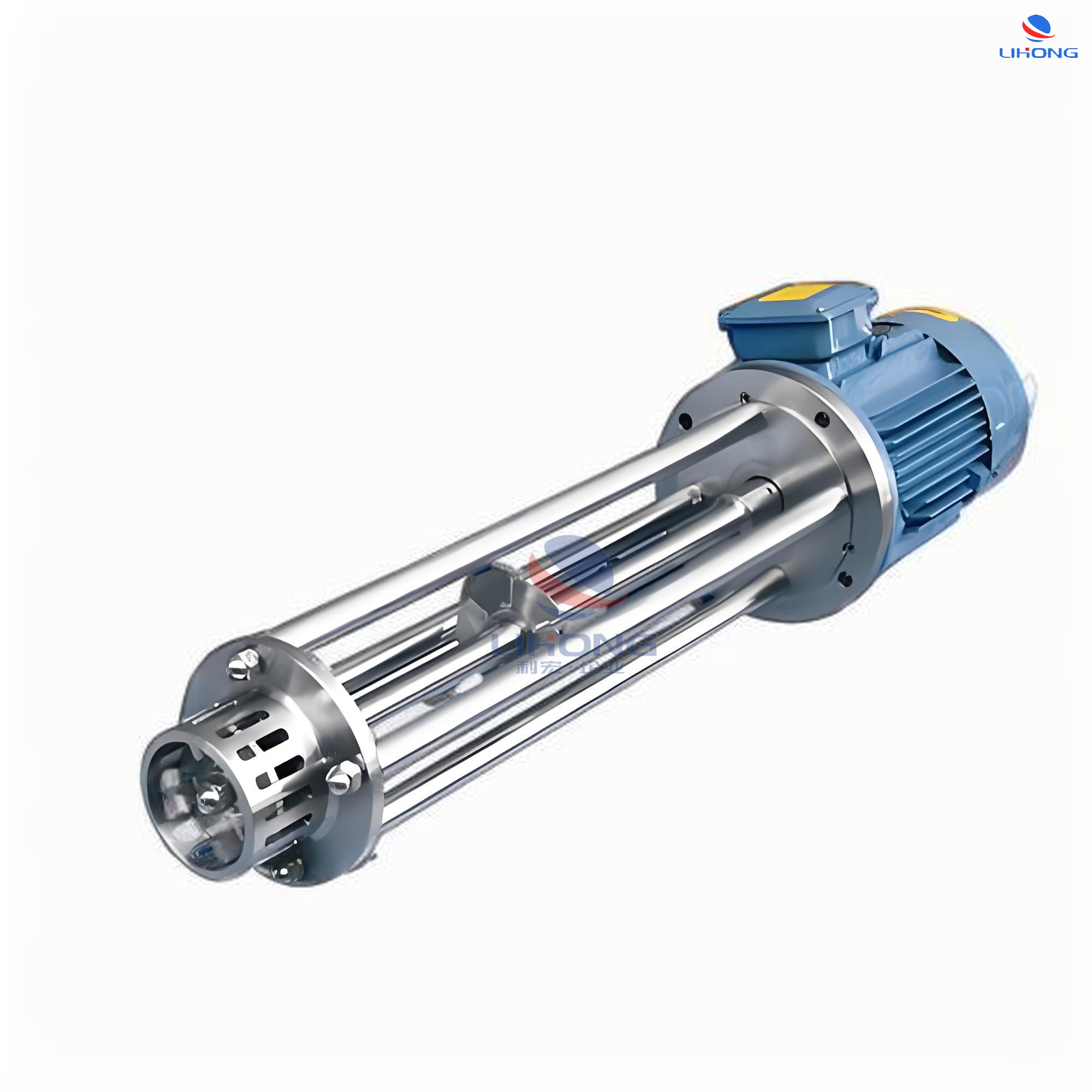

High shear homogeneous emulsifier

Availability:
Quantity:

Main features and functions of high shear homogeneous emulsifier:

The FPL intermittent high shear homogeneous dispersion emulsifier series is a high-performance emulsifying system, and the lower portion of the high shear homogenizer has a unique set, the rotor structure performs highly high shear dispersion, homogeneous emulsification, central part Have high-speed scattered paddle, assist in dispersion homogenization, effective control flow field, more thorough.
The high shear homogeneous dispersion emulsification function is high efficient, fast, uniformly distributed into another continuous phase, and in general, each phase is unhappy. High shear homogeneous emulsifier due to the high-cut line velocity generated by the rotor high speed and high-frequency mechanical effects, making the material in the gap of the material in a narrow gap, and centrifugal Comprehensive effects such as pressure, liquid layer friction, impact tear and turbulence, so that the immobilized solid phase, liquid phase, and gas phase in the corresponding maturation process and the appropriate amount of additives, instantly uniformly and fine dispersion emulsification, after high frequency The cycle reciprocation, eventually get a stable high quality product.


High shear homogeneous emulsifier application range:
Food industry: edible pigment, chocolate coat, filled food, syrup, condiments and various additives, etc .;
Pharmaceutical industry: ointment, ointment, lotion, cream and various vitamins, etc .;
Daily chemical industry: shampoo, detergent, frost / paste, toothpaste, stone solution, hair dye, etc .;
Adhesive industry: rubber solution, polyester sulfide, silicone, hot melt glue, polyurethane, etc.


FRL-C high shear homogeneous dispersion emulsifier

Features:
Always press design, optional filler devices do not contain mechanical seals;
The reactor and ingredients installed at normal pressure, 10L-10000L, meet different production needs
Can be used in conjunction with the reactor and ingredients, can be reduced;
The processing amount is eccentric, vertical, tilted, etc. in various installation forms from 10-10000L / batch installation.


FRL-Y high shear homogeneous dispersion emulsifier

Features:
Pressure design, with mechanical seal;
Installed in the pressure-pressed reaction kettle and ingredients, 10L-10000L, meet different production needs
Can be used in conjunction with the reactor and ingredients, can be reduced;
The processing amount is eccentric, vertical, tilted, etc. in various installation forms from 10-10000L / batch installation.



The high shear homogeneous dispersion emulsification function is high efficient, fast, uniformly distributed into another continuous phase, and in general, each phase is unhappy. Due to the high-cut line speed and high-frequency mechanical effect caused by the rotor high speed and the high-frequency mechanical effect, the material is fixed, the rotor narrow gap is strongly mechanical and liquid shear, centrifugal extrusion, liquid layer friction, impact Comprehensive effects such as tear and turbulence, so that the immobilized solid phase, liquid phase, and gas phase at the corresponding maturation process and the appropriate amount of additives, instantly uniformly and fine dispersion emulsification, and pass through high frequency cycle reciprocation, eventually stable High quality products.


Working schematic


(1) Under the centrifugal force of the emulsifier, the material is axially inhaled from the working head to the working chamber.

(2) In the emulsifier centrifugal force, the material is simultaneously subjected to the extrusion, impact, etc. of the centrifugal force, and the material is first dispersed by the extrusion, impact of the material.

(3) The high line speed of the rotating rotor is operated and forms a strong mechanical and hydraulic shear, the liquid layer friction, impact torn, so that the material is sufficiently dispersed, broken, homogenized by the stator The slot is emitted.

(4) Under the evolution of the emulsifier, the material will be discharged from the upper and lower axis of the working head. Form cycle shear, homogeneous, mixed. After high frequency cycle reciprocation, finally high quality products.


2. Process application


1. Selection instructions:

1) Working pressure: Alternatively, the optional filler device does not contain mechanical seals; the pressure is used to provide a working pressure for mechanical seals;

2) Provide the characteristics of the medium: the viscosity, the amount of particles and the size. How much is the density, whether it is equal

3) Process requirements: dissolution, dispersion, emulsification, homogeneous, broken, and gather.

4) Container Description: Can be used in conjunction with the reactor and ingredients, customizable;
The processing amount is eccentric, vertical, tilted, etc. in various installation forms from 10-10000L / batch installation.


2. Technical parameters


model
Rotating speed
(Rpm)
Treatment (L)
Power (kW)


90
2800-2900
5-50
1.5

100
50-100
2.2

120
100-300
4

140
200-800
7.5

165
300-1000
11

185
500-1500
18.5

200
800-2000
22

220
1000-3000
30

240
1500-5000
45

260
2000-8000
55

280
3000-10000
75


Installation size:

FRL Series High Shear Emulsifier Dimensions:

model
D
D1
D2
D3
L
L1
N-φ
FRL90
110
155
210
210
710
360
8 × ?? 16
FRL100
116
160
215
265
1150
650
8 × ?? 16
FRL120
141
195
255
290
1300
725
8 × ?? 16
FRL140
156
215
280
330
1520
850
8 × ?? 16
FRL160
184
235
280
330
1655
850
8 × ?? 20
FRL180
200
280
360
415
2070
1200
8 × ?? 20
FRL200
240
300
360
415
2130
1200
8 × ?? 20
FRL220
260
320
400
450
2525
1355
8 × ?? 20
FRL240
280
340
400
450
2585
1395
8 × ?? 20
FRL260
330
380
500
550
29955
1650
8 × ?? 20
FRL280
350
400
500
550
3050
1660
8 × ?? 20
