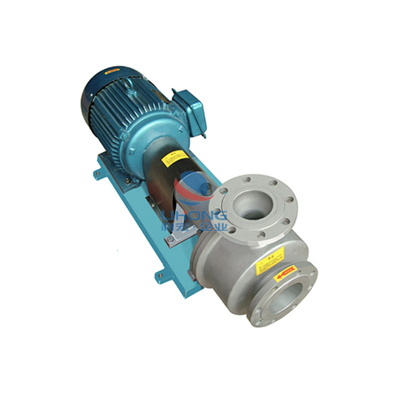

Flat-leaf pump

Availability:
Quantity:
Inquire Add to Basket

First, flat leaf pump overview
The principle of flat leaflets is made of special flat sheets, and the flat leaf pump utilizes physical own viscosity to drive the special structure of the flat impeller to form a layer flow to the fluid medium from the imported outlet. The LHBP type centrifugal flat leaflet is to convey the fluid medium to the physical autoconductive drive and the media formation laminar. Therefore, the medium does not impact strip flow in the pump, which contacts the flow of the impeller and the wall of the tube wall relative to the impeller stationary synchronous motion free friction, in the non-dielectric impact, to destroy your product, there is laminar flow that can protect the pump , The flat leaflet can fundamentally solve the damage of the product, the medium to the wear of the impeller and the pump body, block the impeller, producing cavitation, etc. The special function of the flat leaflet makes the pump can be used more reliable, superior, more economical and more efficient under demanding conditions. At the same time, the most important thing is to do not destroy the media. Suitable for conveying media and high viscosity of different viscosity. The particles contain a medium that needs to protect the particles from damage. It is necessary to be soft and conveying medium that should not be hit by the centrifugal high-speed impact.
Usage: Suitable for conveying different viscosity media and high viscosity media. The solid particles are as high as 75% (root-tone requirements can be designed to deliver 30-80 mm particles) and need to protect the particles from damaged media. Gas or air content can be as high as high 68% of the medium. Cotton pulp containing various fibers. Wood pulp requires soft and transport should not be subject to centrifugation high-speed impact, etc.
Excellent feature: Special functions of flat leaf pumps make it more reliable, superior, more economical under conditions that can be demanding. At the same time, the most important thing is that it is not destroying the media even with fragile blood cells, through a flat leaflet pump. It will not be destroyed. And transport particles, long fibers, and dregs are not entangled, no blockage. The flat leaf pump is not impacted, ensuring the homogeneity of the fluid, and does not produce dehydration. No fiber loss. The mechanical advantages of the leaf pump have no impact, no pulse, radially load, no wear, the flat leaf pump does not require too much parts replacement and maintenance.
It is widely used in pharmaceutical, bioengineering, chemical sewage, wine, starch, paper and food and other industries. The pump has excellent performance, reasonable structure, reliable use.


The principle is made of a special flat plate, which utilizes physical autoous viscosity to drive the special structure of the flat impeller to form a layer stream to pull the fluid medium from the inlet into the outlet. The LHBP type centrifugal flat leaflet is to convey the fluid medium to the physical autoconductive drive and the media formation laminar. Therefore, the medium does not impact strip flow in the pump, which contacts the flow of the impeller and the wall of the tube wall relative to the impeller stationary synchronous motion free friction, in the non-dielectric impact, to destroy your product, there is laminar flow that can protect the pump , The flat leaflet can fundamentally solve the damage of the product, the medium to the wear of the impeller and the pump body, block the impeller, producing cavitation, etc. The special function of the flat leaflet makes the pump can be used more reliable, superior, more economical and more efficient under demanding conditions. At the same time, the most important thing is to do not destroy the media. Suitable for conveying media and high viscosity of different viscosity. The particles contain a medium that needs to protect the particles from damage. It is necessary to be soft and conveying medium that should not be hit by the centrifugal high-speed impact.



Third, LHBP type leaf pump performance parameters:

parameter
model
Traffic (T / H)
Leng (M)
Power rate (kW)
Rotating speed
(r / min)
import
exit
LHBP50-40-160
10
24
3
2840
DN50
DN40
LHBP50-40-200
10
35
4
2840
DN50
DN40
LHBP50-40-200S
8
12
1.1
1450
DN50
DN40
LHBP65-50-160
25
25
4
2840
DN65
DN50
LHBP65-50-200
25
35
5.5
2840
DN65
DN50
LHBP65-50-250
25
50
7.5
2840
DN65
DN50
LHBP65-50-200S
20
12
2.2
1450
DN65
DN50
LHBP65-50-250S
20
20
3
1450
DN65
DN50
LHBP80-65-200
50
35
11
2800
DN80
DN65
LHBP80-65-250
50
50
18.5
2800
DN80
DN65
LHBP80-65-250S
40
20
4
1450
DN80
DN65
LHBP80-65-300S
40
32
5.5
1450
DN80
DN65
LHBP100-80-200
80
35
15
2800
DN100
DN80
LHBP100-80-250
80
50
22
2800
DN100
DN80
LHBP100-80-250S
70
20
7.5
1450
DN100
DN80
LHBP100-80-300S
70
32
11
1450
DN100
DN80
LHBP150-100-250S
100
20
11
1450
DN150
DN100
LHBP150-100-300S
100
32
15
1450
DN150
DN100
LHBP150-100-400S
100
55
22
1450
DN150
DN100
LHBP200-150-250S
180
18
15
1450
DN200
DN150
LHBP200-150-300S
200
30
30
1450
DN200
DN150
LHBP200-150-400S
200
45
45
1450
DN200
DN150
LHBP250-200-250S
400
18
30
1450
DN250
DN200
LHBP250-200-300S
400
30
55
1450
DN250
DN200
LHBP250-200-400S
400
48
75
1450
DN250
DN200
Description: After the model is \"s \" is a 4-pole motor.
