JN Series
Wenzhou Lihong
composition

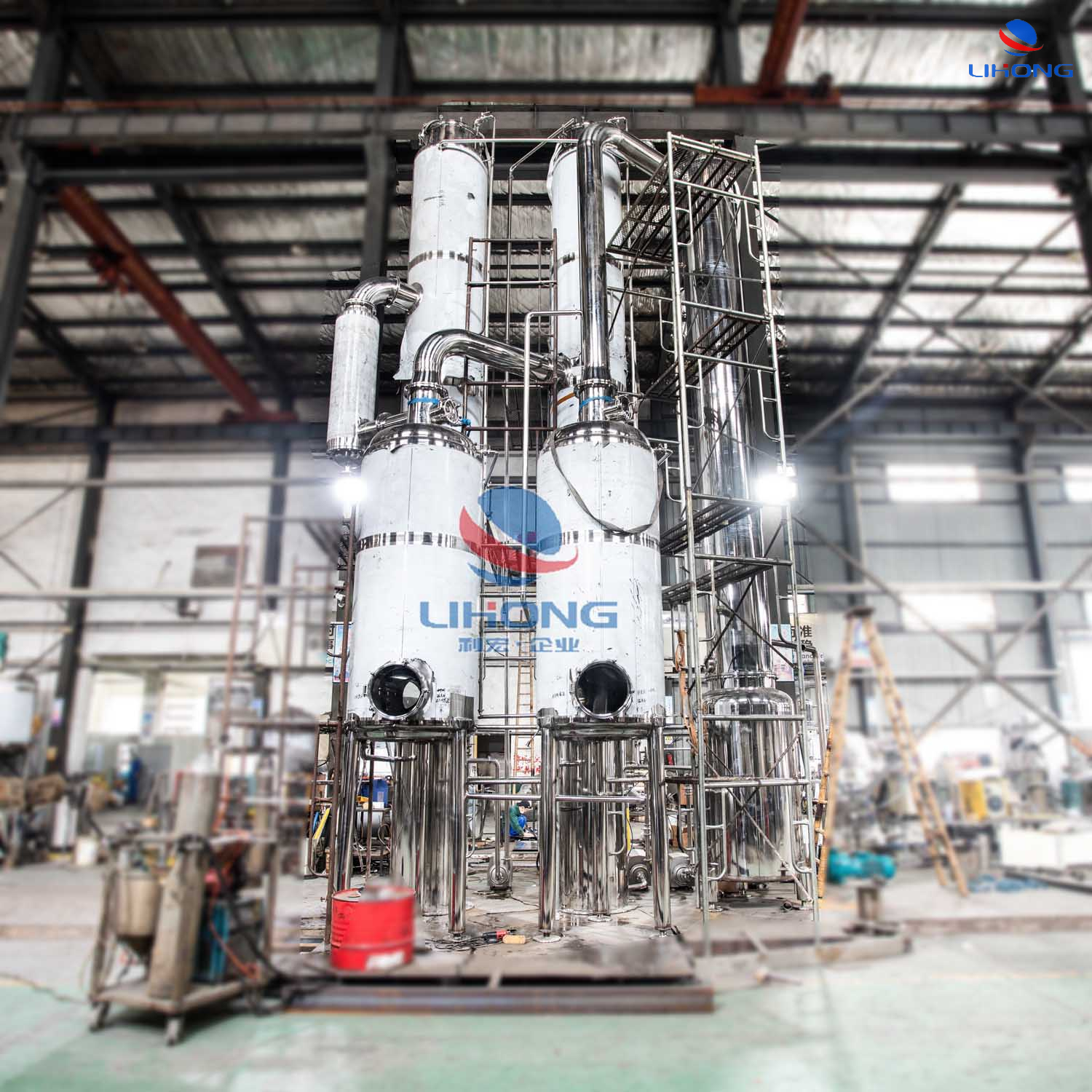

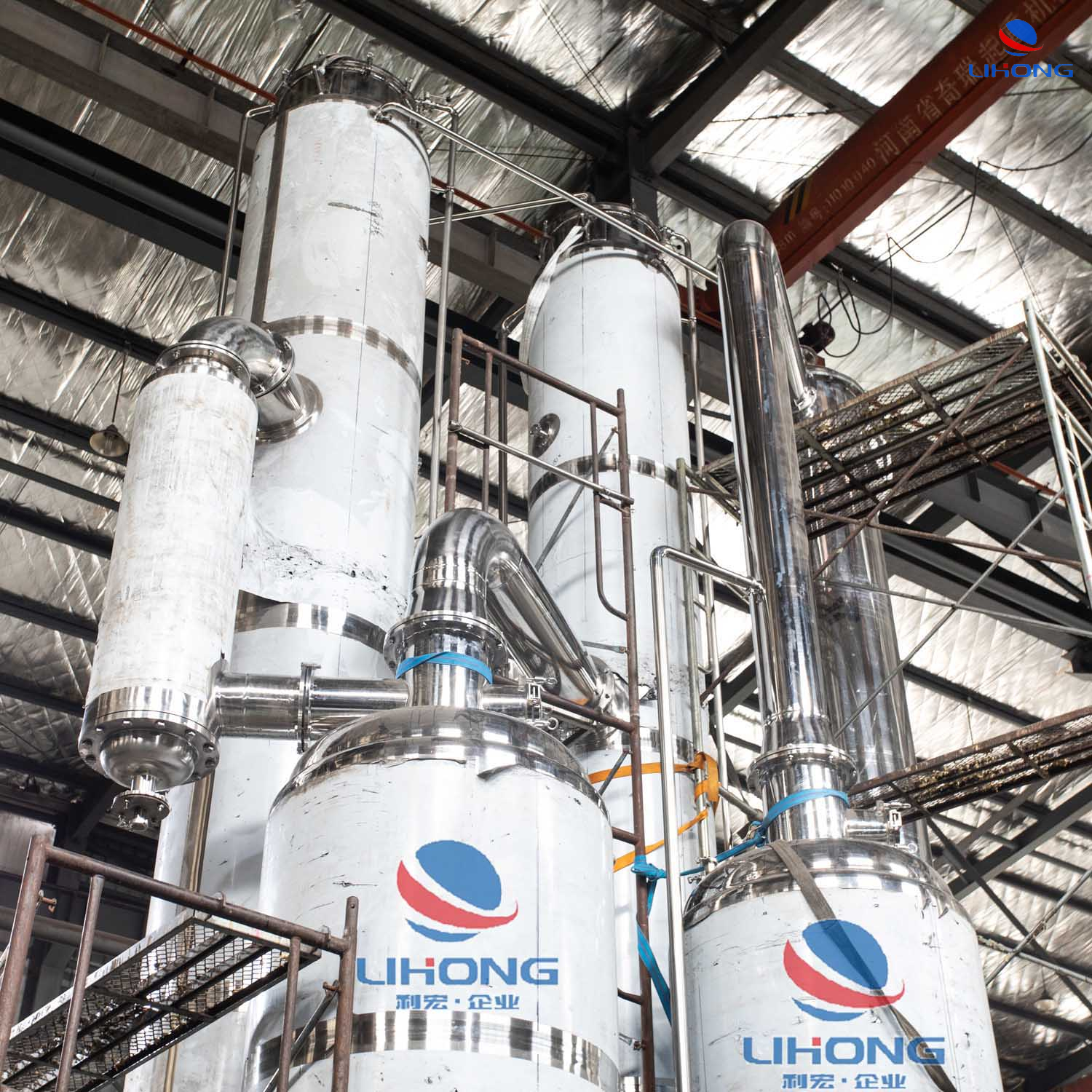

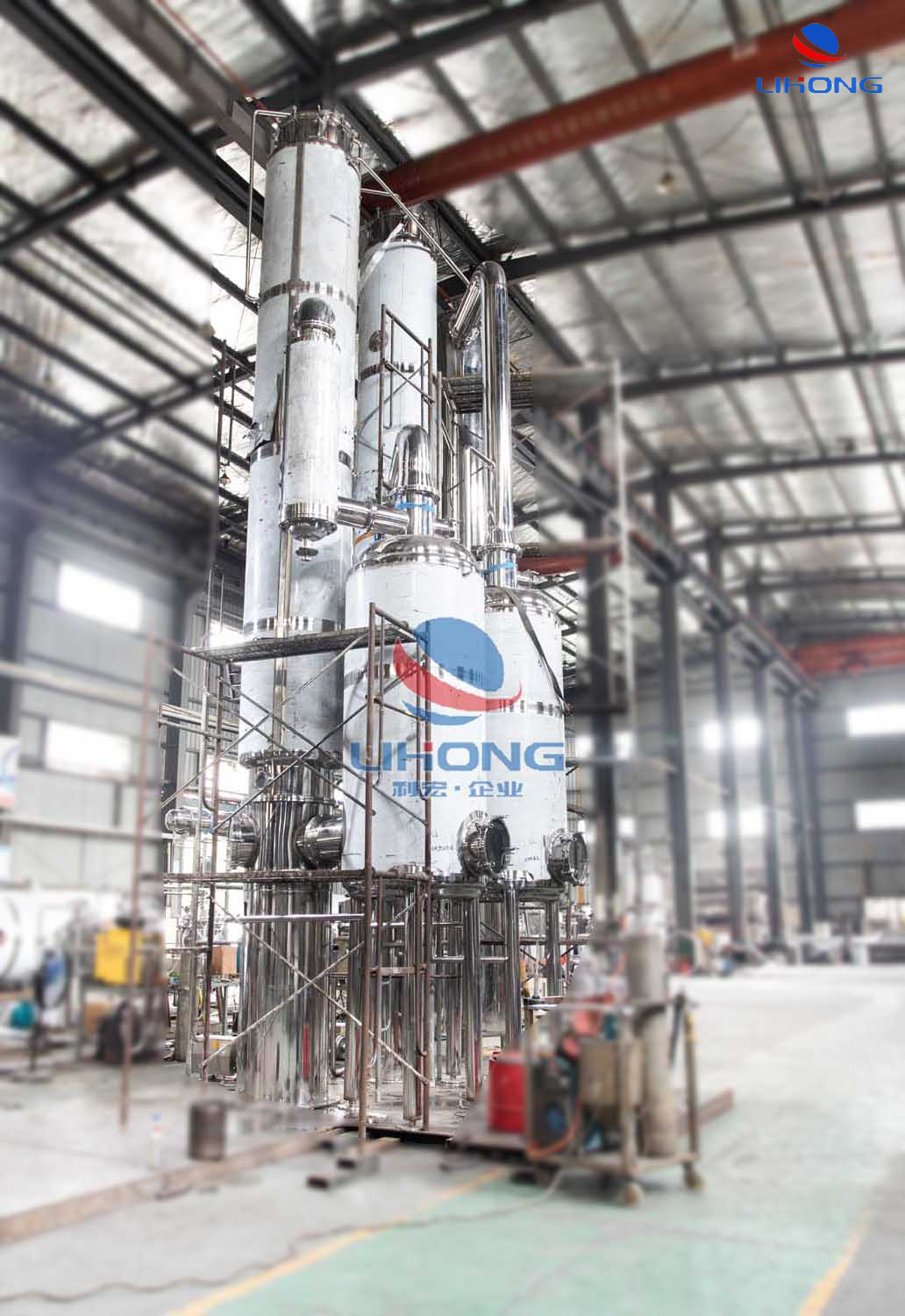

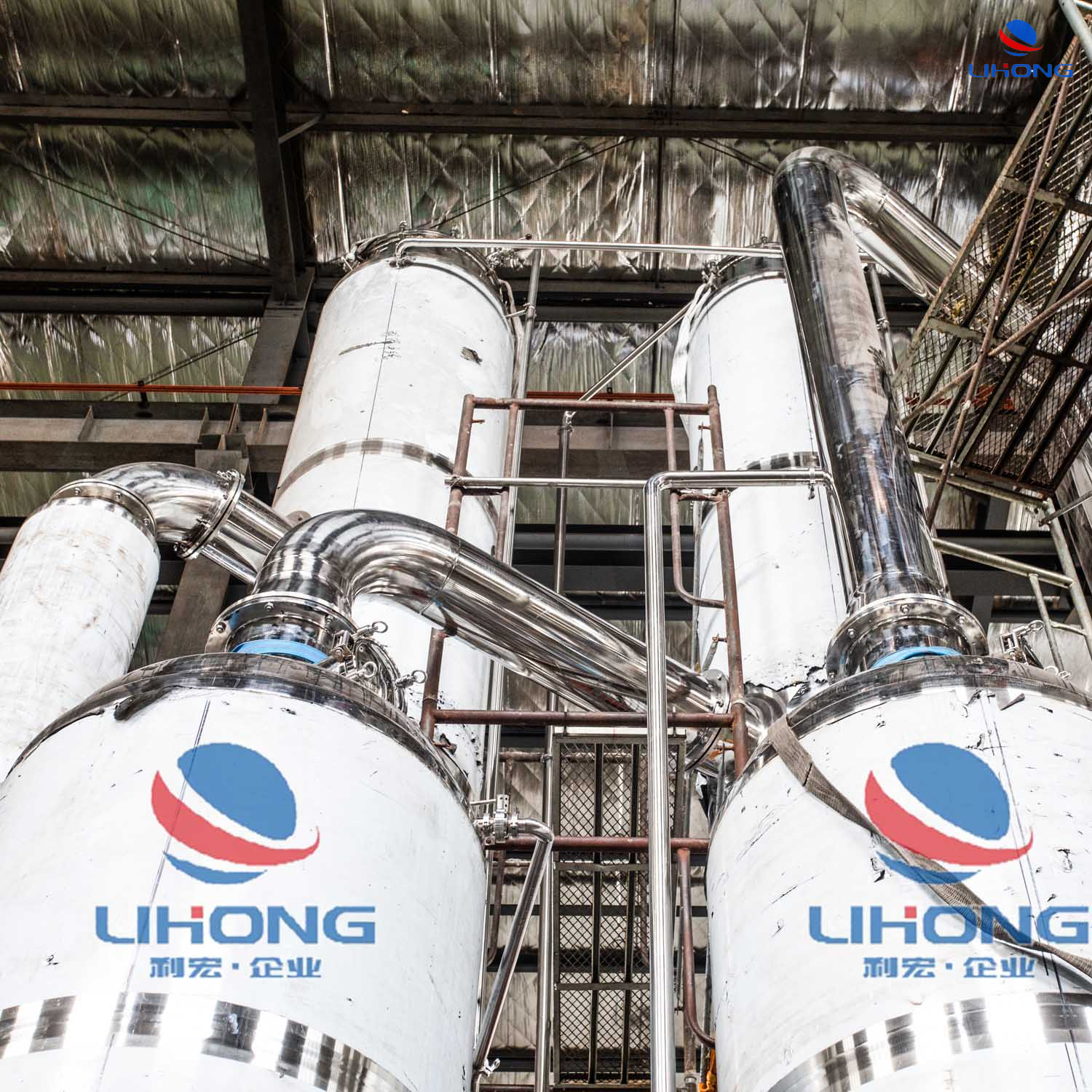

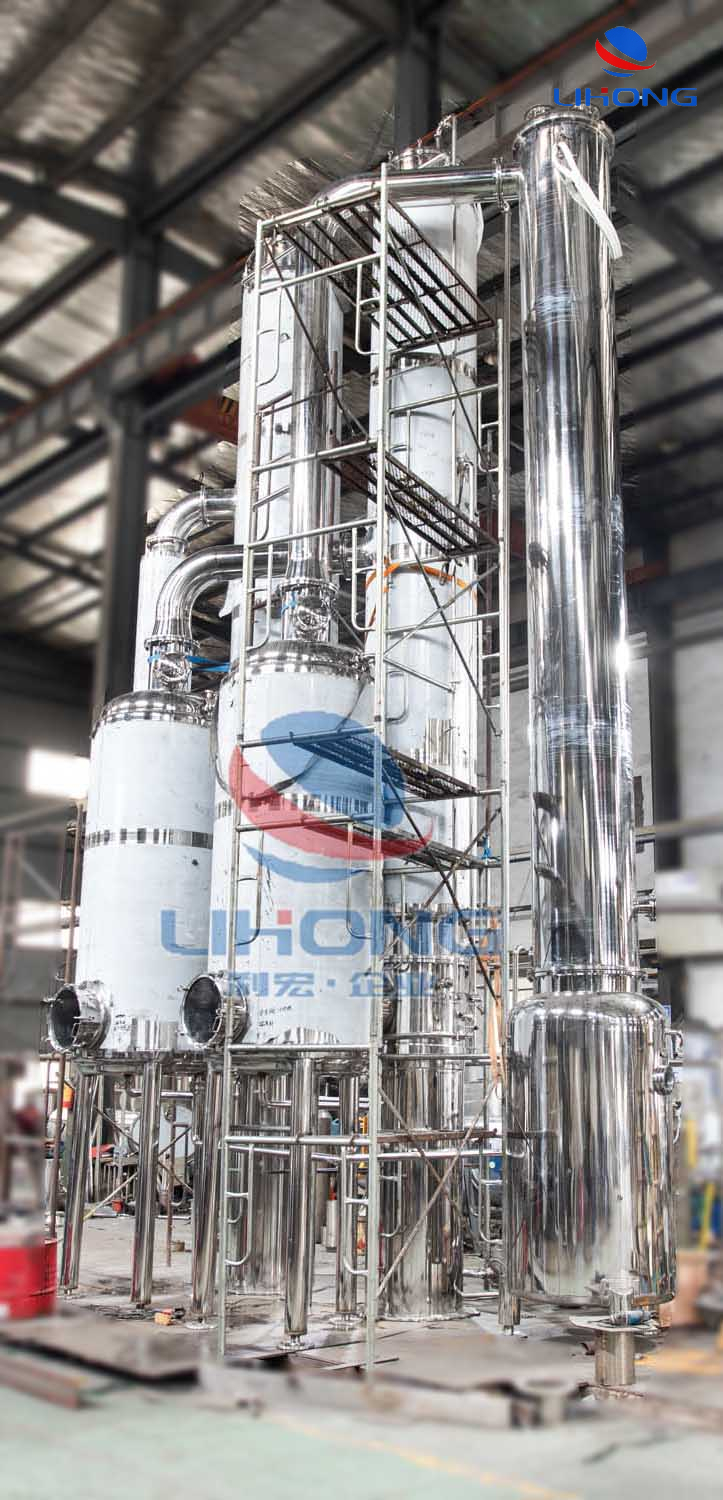

Double-effect flying film evaporator consisting of a heater, a separator, a condenser, a preheater, a vacuum system, a hot press pump, and electricity
Merchant meter, control cabinet, work platform, etc.
Material
SUS304 or SUS316L is determined according to the material process requirements.
Features
◆ The material is very short in the heating tube, especially suitable for the concentration of thermal materials.
Continuous feed, continuous discharge.
◆ The evaporation temperature is low, and the efficiency and evaporation temperature can be selected according to customer requirements.
◆ Heating the evaporator top spray dilute membrane device unique, film formation is uniform.
◆ The condenser structure is unique, the heat transfer coefficient is large, the effect is good.
◆ Use the injection hot press pump and the energy saving effect is obvious.
◆ Self-control and hand-controlled models can be used according to customer requirements.
| Model MODEL | JN-800 | JN-1200 | JN-1600 | JN-2000 | JN-2500 | |
| Water Swallow, Kg / H Evaporating Quantity of Watcr | 600 | 800 | 1000 | 1200 | 1600 | |
| Feeding Concentration (According to Customer Requircments) | 11.5 ~ 12 | |||||
| Production concentration% Conccntration of Outlct According to Customer Requircments (Can be exposed accordingly by user) | 45 ~ -48 | |||||
| Blue Automatic Pressure MPA Pressure Of Stcam | 0.6 ~ 0.8 | |||||
| Steam consumption kg / h stcam consunption | 390 | 620 | 835 | 1020 | 1150 | |
| Yan hair temperature ℃ Evaporating tcmpcrature | A-efficient Single cffect | 70 | According to customer requirements, the design evaporation temperature lower DesiDcan be mnde accordirz tO cUstomr roos ircmcnts with Jonuer tewArataro of oSpcruton | |||
| The second effect Doublc effect | 45 | |||||
| Heating temperature ℃ Hcating tcmpcrature | A-efficient Single cffect | 80 | ||||
| The second effect Double cffect | 70 | |||||
| Sterilization of tumultuous ℃ Sterilization temperaturc | 86 to 94 | |||||
| Cooling water consumption T / h Consumption of cooling water (Water 20 ℃, water<First 0 ℃ (inlct watcr 20 ℃, outlct watcr <40 ℃) | 6 | 9 | 12 | 15 | 18 | |
| Total power kw Mlotor powcr | 18 | 18 | 25.5 | 25.5 | 31.5 | |
| Dimensions (length x height x Tiao) mEquipment dincnsionsL * H) | 4.5X2.3X7.1 | 4.5X2.3X7.6 | 4.5X2.4X8 | 4.5X2,4X8.5 | 4.7X2.5X8.5 | |
