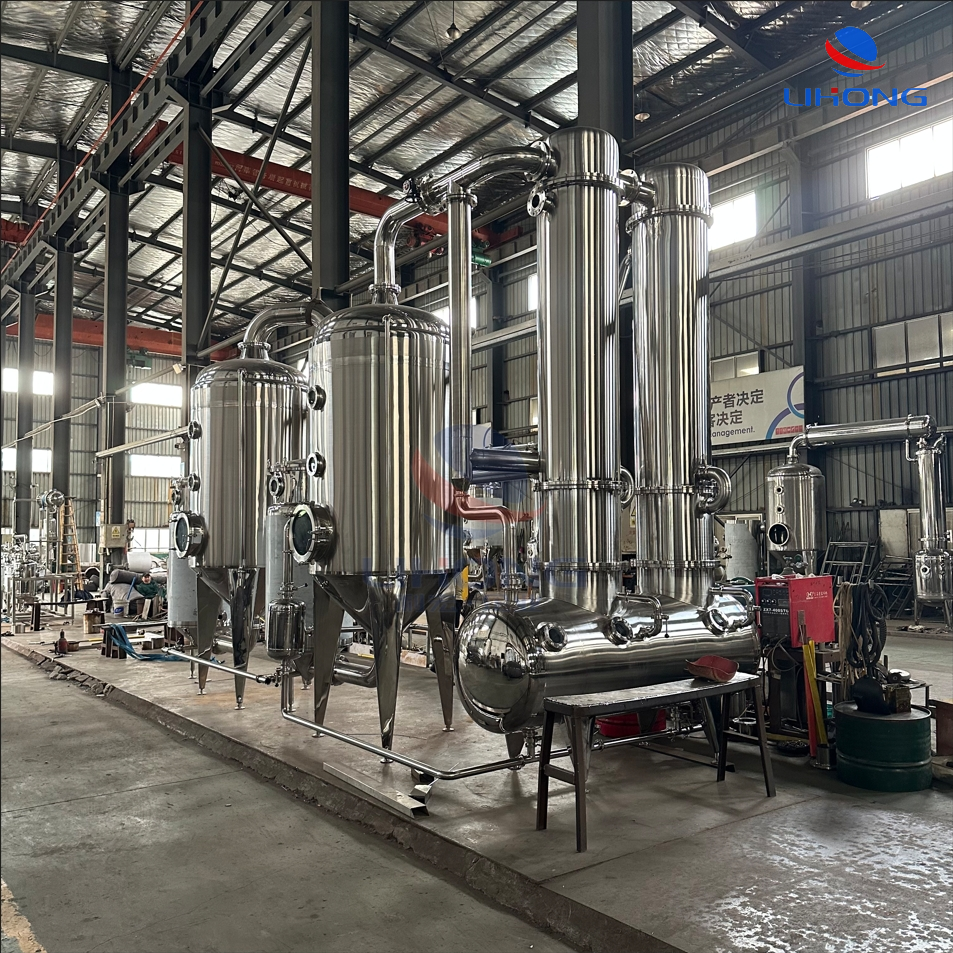

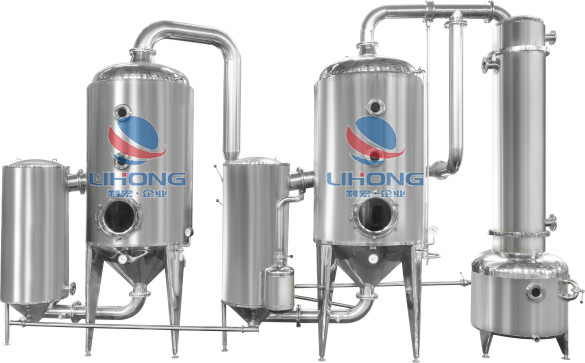

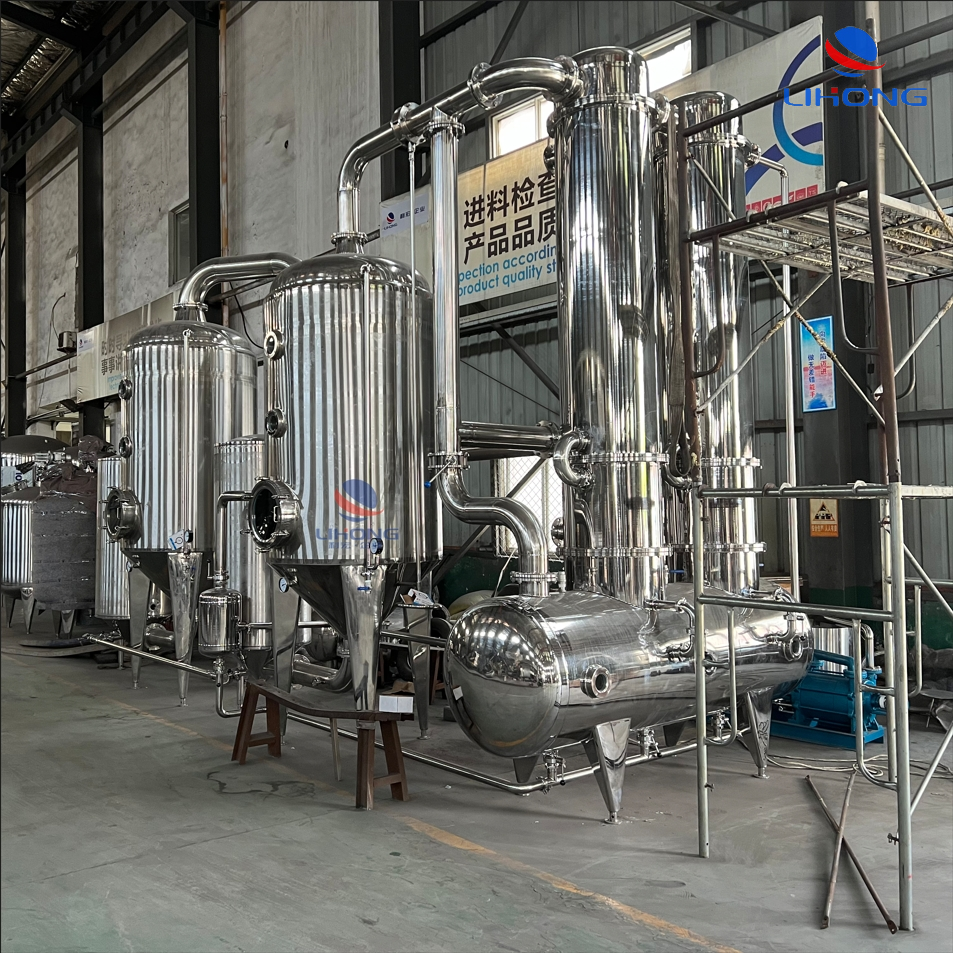

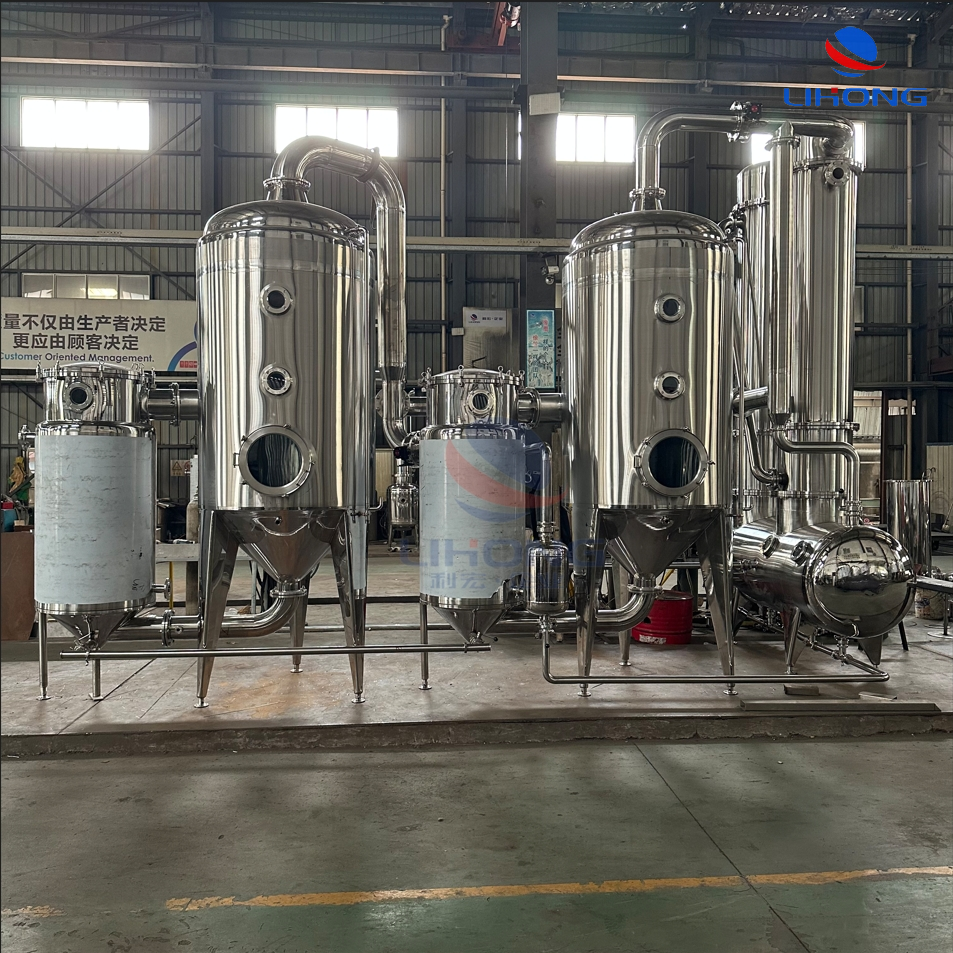

Double-effect energy-saving concentrator

Availability:
Quantity:

Concentrator-SJN series.Double efficiency energy condenser.

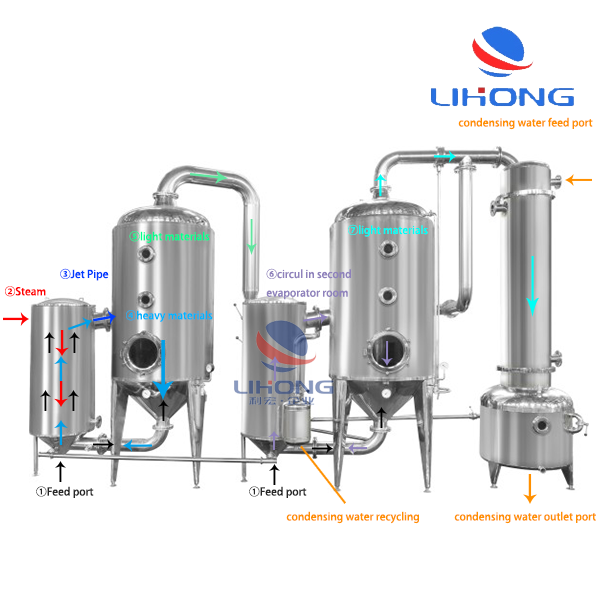

It is a new generation of research and development based on similar products from home and abroad.ConcentratorEnergy-saving products. Double-efficiency energy conservation concentrate set multi-function extraction, vacuum concentration is integrated,ConcentratorSimplified the operation procedure. At the same time, due to the entire extraction and concentration of the sealing state, it avoids \"running \", \"\", \"leak \" and other phenomena, greatly improve the working environment, reducing energy consumption. The unit and the material contact portion are manufactured in high quality stainless steel SUS304 (or SUS316L), which meets GMP requirements. This unit is suitable for the extraction and concentration of materials such as Chinese herbal medicines, juices, and other materials, juices, and the recovery of organic solvents.

Double efficiency energy condenserrelatedConcentration equipment:Entrepreneal cycle concentrator、Threular energy conservation concentrator、Multifunctional alcohol recovery concentrator、Vacuum reduced pressure concentrated tank、Spherical vacuum concentrated tank、Concentrator、Route concentrator、Coil vacuum concentrated pot.

Product numberSJN-500SJN-1000SJN-1500SJN-2000SJN-3000
Evaporation (kg / h water)6001200170021003100
Steam pressure OMPA)25050075010001500
Steam consumption (kg / h)
0.09
Circulating water consumption (t / h)612151820
Evil temperature (° C)80-90
Evaporation temperature (° C)55-70
Treatment (MPA)-0.06
Upper (MPA) Effect-0.08

Length40005000600065007500
Dimensions (mm)Width W15001600160017002000

High H33003500370043004500
Container categoriesNormal pressure


Company Information


Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.


Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.


Wenzhou Lihong Machinery Technology Company


Certification


Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.


certificate


Factory Display


factory display


FAQ:

1.  Are you a factory or trading company?

We are a factory.


2.  How long is the warranty period?

One year.


3. What's the main market of your company?

We have customers all over the world.


4.What's your delivery time?

Normally it is around 30 days, the exact time depends on product type and quantity.


5. What's the payment terms?

TT, LC, etc.


6. Can we visit your factory?

Welcome to visit our factory!


7. Where is your factory? How can we go there?

Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
