Crystallization tank, seed tank

Availability:
Quantity:

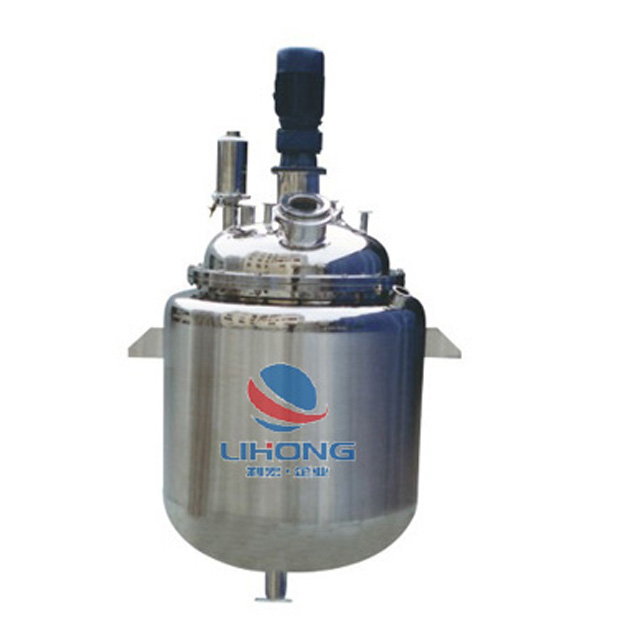

Seed cans, crystalline cans are widely used in pharmaceutical, fine chemical, biological engineering, etc. The seed can, the crystalline tank, the upper and lower head (or cone), using a rotary voltage R corner, the walls of the can, the seed can, crystalline tanks, Ra≤0.4 μm, no sanitary dead angle, fully enclosed design Make sure that the material is always mixed, fermented, seed tanks, crystalline tank equipment, is equipped with an air breathing apparatus, cleaning ball, hygienic hole, visual mirror, and visual lamp. Pharmaceutical, fine chemical, biological fermentation process is a sterile, non-pollutable process, the fermenter uses a sterile system to avoid and prevent microbial pollution in the air, greatly extend your product's quality and product pure, we A sterile respiratory pore or aseptic positive pressure fermentation system is specially designed to be installed on the tank. Circulating heating and cooling can be performed in a heating or cooling medium. The portion of the material contact is made of stainless steel SUS304 (or SUS316L). The incubation is made of polyurethamia foam or pearl cotton, and the outer surface matte maturing is in line with the GMP standard. Capacity can be made of more than 100-20000L different specifications.

Crystalline can, seed tank Other tank series: alcohol sedimentation can, reactor, seepage tank, stainless steel liquid tank, fermenter (seed can), horizontal insulation storage tank, storage tank, distilled water storage tank

Specification model100L200L50ol100ol2000L500OL1000OL20000L
Diameter (mm)4005007009001200150018002300
Height (AM)20002300265029003800448052506550
Pipe pressure (MPa)0.20.20.20.20.20.20.20.2
Cridge pressure (MPa)0.30.30.30.30.30.3Tube 0.3Tube 0.3
Mix paddle22222334
Stirring speed (r / min)80
Motor power (kW)0.550.751.11.535.57.57.5
cooling methodJacketTube


Company Information


Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.


Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.


Wenzhou Lihong Machinery Technology Company


Certification


Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.


certificate


Factory Display


factory display


FAQ:

1.  Are you a factory or trading company?

We are a factory.


2.  How long is the warranty period?

One year.


3. What's the main market of your company?

We have customers all over the world.


4.What's your delivery time?

Normally it is around 30 days, the exact time depends on product type and quantity.


5. What's the payment terms?

TT, LC, etc.


6. Can we visit your factory?

Welcome to visit our factory!


7. Where is your factory? How can we go there?

Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
