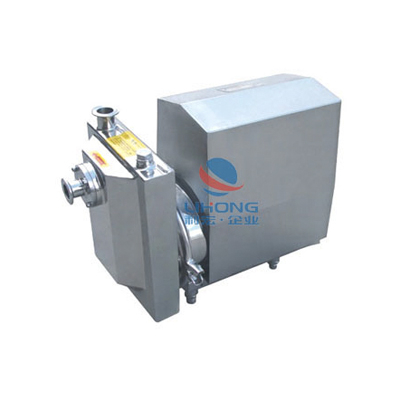

BOZP series self-priming pump


The Bozp Series self-suction pump is specifically designed to treat a liquid level lower than the pump inlet, a fluid material delivery of a part of the gas. Its pump housing, the pump cover and the impeller are manufactured in high quality stainless steel 304 or 316L. Motor tape stainless steel shield. Surface mirror polishing roughness Ra0.28um. Silk masonry. Fully compliant with GMP requirements.
Mainly used in pharmaceutical, alcohol, food, chemical, beverage and other industries, which require self-suction type and liquid transport containing some of the gas. Especially in the (CIP) on site cleaning system for backhaul pump.

· Material: 304 or 316L (optional)

· Work temperature: -10 ° C-110 ° C (sterilization temperature 140 ° C)

· Working environment and media determine if motor explosion is required.

· Sealing material: silicone rubber, fluororubber, triendylev, polytetrafluoro, butter.

· Import and export connection: clamp fast installation, DIN standard live, flange, welding, etc.

Bozp type self-suction pumps are to draw liquid or foam that can even take self suction when only air is mixed. The pump has excellent performance, reasonable structure, small size, reliable use. The material is applied to the tank of the liquid lower than the pump, or in the CIP cleaning system, as the cleaning liquid rendering pump.

All of the Bozp type centrifugal hygiene pump contact material is manufactured by 316L \ 304 material, mechanical seal, using wear-resistant, acid-based hard alloy, sealed ring is silicone rubber, fluororubber, impeller, easy to clean Dead angle, in line with the relevant provisions of \"Pharmaceutical Enterprise Quality Management Specification\" (ie GMP) and US \"The Food and Drug Administration\" (ie, FDA).

Second, Structure Description:
1, Bozp type self-suction pump is a single-stage self-suction form-based pump, consisting of pump cover, impeller, pump body, motor, etc. The impeller is a spridge, and the pump cover is formed into the inner cavity of the pump. When the impeller is rotated in the inner cavity of the pump, the volume of the impeller radial and the inner cavity is gradually increased by the suction port, to the discharge port, composed The vessel is gradually narrowed. Thus, the liquid contained in the wheel spokes, to suck and discharge may be reciprocating action, a certain self-absorption capacity.

First, the Bozp type self-suction pump model has the following meanings: Take Bozp3-140 as an example:
BOZP 3- 140
BOZP: self-priming pump

3: pump flow (T / H)
140: pump impeller nominal diameter (mm)

Two: Technical Data

· Material: 304 or 316L (for selection)

Operating temperature: -10 ℃ -110 ℃ (sterilization temperature 140 deg.] C)

· Working environment and the media need to determine whether the motor explosion.

· Sealing materials: silicone rubber, fluorine rubber, EPDM, PTFE, NBR.

Connection export and import: quick clamp, DIN standard union, flanges, welding or the like are available.

Company Information

Wenzhou Lihong Machinery Technology Co., Ltd is a professional manufacturer of sanitary stainless steel extraction, concentration, recycling equipment, CIP cleaning system, PLC control equipment, pipeline fittings and other equipment. We are committed to customizing stainless steel tanks for customers, with providing the service of designing drawings.

Our Equipment applys in various industries such as pharmaceutical, dairy, food and beverage, chemical, winery and brewery, bio engineering, etc., and we can procide non-standard products to meet customers' needs.

Wenzhou Lihong Machinery Technology Company


Our products are designed and manufactured is strictly according to ISO9001-2000 international quality standards, and comply with 2010 GMP medical standard.
