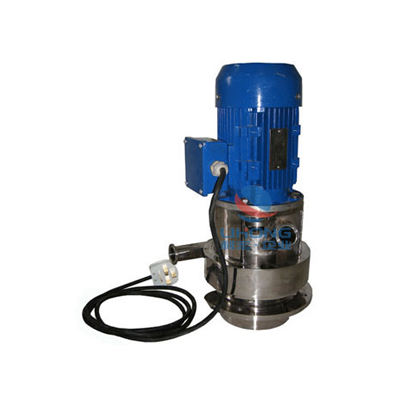

The ADF series fully automated mechanical apparatus, using centrifugal force to break the foam produced by the fermentation process, separation of gas-liquid, separated foam solution can be returned to the fermenter, reduce the loss of escape, combined with the exhaust gas condensing system, can be more effective Loss of fermentation liquid under large ventilation conditions. The foam is imported into the working area of the rotor by an apparatus. The high-speed rotor is provided with the shear force of the high-speed rotor, and the liquid released by the bubble immediately is subjected to the wall of the abdomen, and is compressed into a liquid stream, partially reflux into the fermenter, partially The porous structure through the machine flows into the scroll collector, and is returned from the pipe to the fermentor.
The ADF series fully automatic mechanical apparatus is suitable for embarrassment of various fermentation processes, such as the prefusion, amino acid organic product fermentation, blisters of yeast culture, blisters of vinegar process. Features of the ADF series automatic mechanical foamers:
Do not use or minimize chemical antifoaming agents, eliminate chemical antifoaming agents to fermentation and downstream separation
Improve the stability of the fermentation tank and the stability of the biochemical reaction, reduce the escape
Reduce the residence time of microorganisms in the foam, improve biochemical reaction efficiency
The ADF series fully automated mechanical apparatus, using centrifugal force to break the foam produced by the fermentation process, separation of gas-liquid, separated foam solution can be returned to the fermenter, reduce the loss of escape, combined with the exhaust gas condensing system, can be more effective Loss of fermentation liquid under large ventilation conditions. The foam is imported into the working area of the rotor by an apparatus. The high-speed rotor is provided with the shear force of the high-speed rotor, and the liquid released by the bubble immediately is subjected to the wall of the abdomen, and is compressed into a liquid stream, partially reflux into the fermenter, partially The porous structure through the machine flows into the scroll collector, and is returned from the pipe to the fermentor.
technical parameter | |||||
Mechanical foam type | ADF-I-1 | ADF-I-2 | ADF-I-3 | ADF-I-4 | ADF-I-5 |
Foam gas content (M3 / h) | 20 | 40 | 80 | 150 | 350 |
Motor power (kW) | 1.1 | 3 | 5.5 | 11 | 18.5 |
Mechanical foam type | ADF-II-1 | ADF-II-2 | ADF-II-3 | ADF-II-4 | ADF-II-5 |
Foam gas content (M3 / h) | 1 | 4 | 12 | 25 | 55 |
Motor power (kW) | 0.15 | 0.75 | 2.2 | 11 | 15 |
Mechanical foam type | ADF-III-1 | ADF-III-2 | ADF-III-3 | ADF-III-4 | ADF-III-5 |
Foam gas content (M3 / h) | 0.8 | 20 | 65 | 140 | 500 |
Motor power (kW) | 0.5 | 1.1 | 3 | 7.5 | 25 |
* The design of mechanical apparatus generally is designed according to the foam type, reactor geometric size, ventilation and other conditions. |
The ADF series fully automated mechanical apparatus, using centrifugal force to break the foam produced by the fermentation process, separation of gas-liquid, separated foam solution can be returned to the fermenter, reduce the loss of escape, combined with the exhaust gas condensing system, can be more effective Loss of fermentation liquid under large ventilation conditions. The foam is imported into the working area of the rotor by an apparatus. The high-speed rotor is provided with the shear force of the high-speed rotor, and the liquid released by the bubble immediately is subjected to the wall of the abdomen, and is compressed into a liquid stream, partially reflux into the fermenter, partially The porous structure through the machine flows into the scroll collector, and is returned from the pipe to the fermentor.
The ADF series fully automatic mechanical apparatus is suitable for embarrassment of various fermentation processes, such as the prefusion, amino acid organic product fermentation, blisters of yeast culture, blisters of vinegar process. Features of the ADF series automatic mechanical foamers:
Do not use or minimize chemical antifoaming agents, eliminate chemical antifoaming agents to fermentation and downstream separation
Improve the stability of the fermentation tank and the stability of the biochemical reaction, reduce the escape
Reduce the residence time of microorganisms in the foam, improve biochemical reaction efficiency
The ADF series fully automated mechanical apparatus, using centrifugal force to break the foam produced by the fermentation process, separation of gas-liquid, separated foam solution can be returned to the fermenter, reduce the loss of escape, combined with the exhaust gas condensing system, can be more effective Loss of fermentation liquid under large ventilation conditions. The foam is imported into the working area of the rotor by an apparatus. The high-speed rotor is provided with the shear force of the high-speed rotor, and the liquid released by the bubble immediately is subjected to the wall of the abdomen, and is compressed into a liquid stream, partially reflux into the fermenter, partially The porous structure through the machine flows into the scroll collector, and is returned from the pipe to the fermentor.
technical parameter | |||||
Mechanical foam type | ADF-I-1 | ADF-I-2 | ADF-I-3 | ADF-I-4 | ADF-I-5 |
Foam gas content (M3 / h) | 20 | 40 | 80 | 150 | 350 |
Motor power (kW) | 1.1 | 3 | 5.5 | 11 | 18.5 |
Mechanical foam type | ADF-II-1 | ADF-II-2 | ADF-II-3 | ADF-II-4 | ADF-II-5 |
Foam gas content (M3 / h) | 1 | 4 | 12 | 25 | 55 |
Motor power (kW) | 0.15 | 0.75 | 2.2 | 11 | 15 |
Mechanical foam type | ADF-III-1 | ADF-III-2 | ADF-III-3 | ADF-III-4 | ADF-III-5 |
Foam gas content (M3 / h) | 0.8 | 20 | 65 | 140 | 500 |
Motor power (kW) | 0.5 | 1.1 | 3 | 7.5 | 25 |
* The design of mechanical apparatus generally is designed according to the foam type, reactor geometric size, ventilation and other conditions. |
