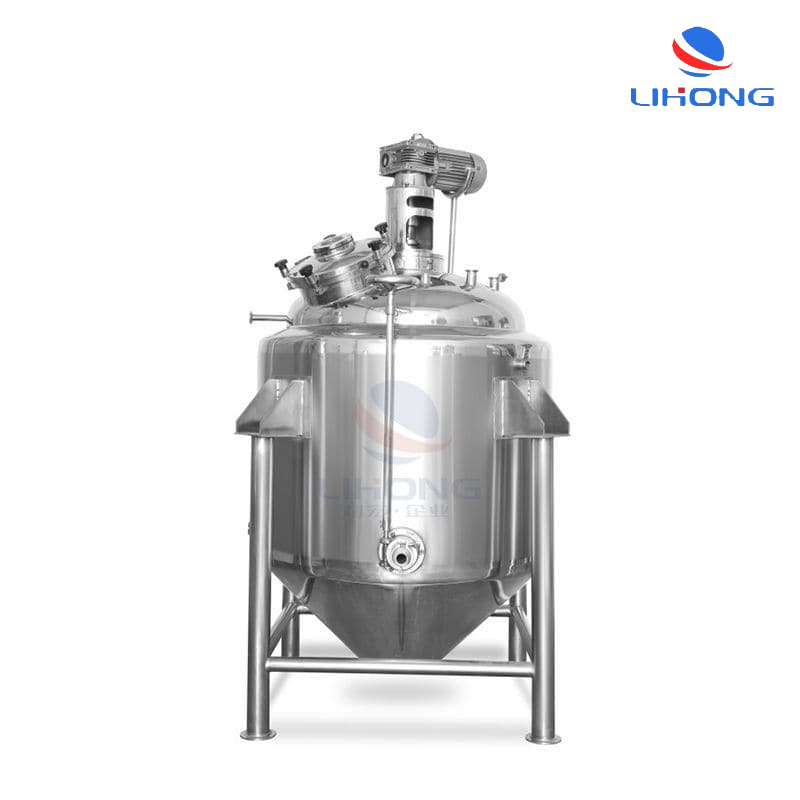

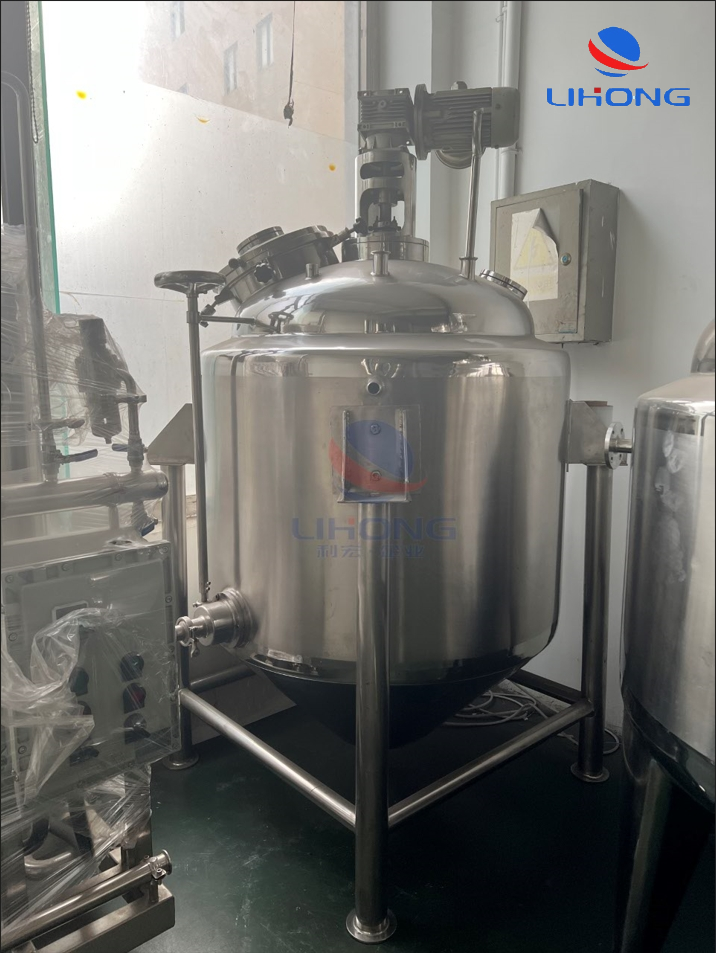

Alcohol sedimentation can-JC series alcohol sedimentation can be used in Chinese medicine, oral medicines, food, health products, chemical and other industries. Alcohol precipitated cans (also known as the newly developed special equipment for the old process. The alcohol precipitate tank is mainly used for the concentrated solution of the condensed solution for the concentrated solution, and it can be used for the concentrate for hydrosite after the conventional alcohol. The JC series alcohol sediment is made of an elliptical head of the attachment, a cylindrical bodies of a conical bottom, and a special fine-tuning, and a special fine-tuning, the traditional Chinese medicine is fried and concentrated. Alcoholic liquid, then normal temperature, low temperature freezing settlement to improve the purity and clarification of traditional Chinese medicine extract. All of the JC series alcohol sedimentation can be manufactured in stainless steel SUS304 (or SUS316L). It is equipped with high pressure water spray cleaning system. In the jacket, the jacket can be low-temperature cooling water, the transmission is mechanical seal, the explosion-proof motor ensures production process, in line with GMP medical standards , Alcohol sedimentation tank equipment surface mirror or mattut treatment.
Other tank series outside the alcohol sedimentation: seepage cans, reactor, stainless steel liquid tank, crystalline tank, seed can, fermenter (seed can), horizontal thermal insulation tank, storage tank, distilled water storage tank
| Model specificationsModel and specification | JC-300 | JC-500 | JC-1000 | JC-1500 | JC-2000 | JC-3000 | JC-6000 |
| Volume(L) | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 6000 |
| Change area(m) | 1.8 | 3 | 4.5 | 5.4 | 6.2 | 8.1 | 12 |
| Work temperature (° C) | -15 ~ 25 | ||||||
| Change medium working pressure(MPa) | 0.25 | ||||||
| Work pressure(MPa) | 0.09 | ||||||
| Agitation power(kW) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 |
| Stir speed(r / min) | 32 | ||||||
| Heat transfer coefficient(K) | 150-200 | ||||||
| equipment weight(Kg) | 450 | 500 | 580 | 630 | 910 | 1410 | 2080 |
