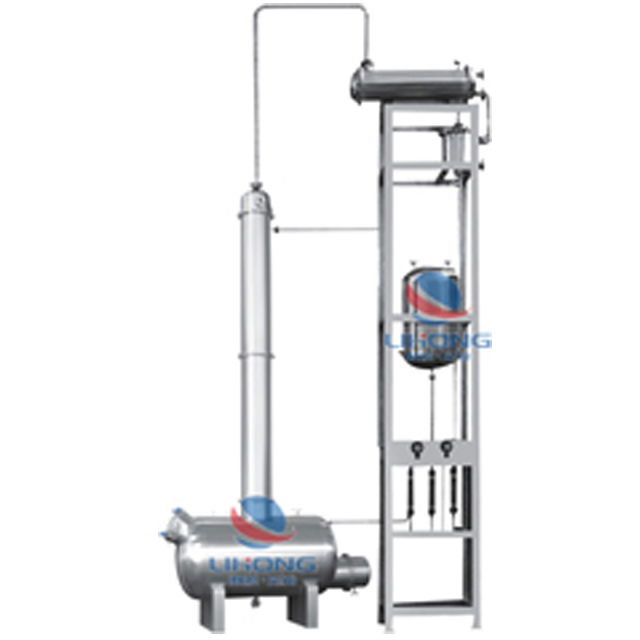

Alcohol Recycling Tower-JH Series Alcohol Recycling Tower consists of tower kettle, tower, condenser, cooler, high storage tank, etc. The equipment and material contact portions are manufactured in stainless steel SUS304 (or SUS316L), with good corrosion resistance, energy saving, environmental protection, reduced production cost, and improve efficiency. This device can distillation of 30 degrees to 50 degrees to 93 degrees to 95 degrees, and the residual discharge is low, which meets environmental requirements, alcohol recovery tower equipment outer surface maturing, in line with GMP medical standards.
| Model Specification Model and Specification | JH-200 | JH-300 | JH-400 | JH-500 | JH-600 | JH-800 |
| Tower volume (L) | 640 | 1220 | 1450 | 2300 | 2505 | 3200 |
| Tower height (mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 |
| High tank capacity (L) | 300 | 400 | 650 | 800 | 1000 | 1500 |
| Coagulation area (m) | 5 | 8 | 11 | 18 | 25 | 45 |
| Cooling area (m) | l | 1.5 | 2.2 | 4 | 6 | 8 |
| Heating area (m) | 3.0 | 6.0 | 6.5 | 10 | 15 | 26 |
| Recycling capacity (kg / h) | 45 ~ 50 | 90 ~ 100 | 150 ~ 160 | 280 ~ 300 | 420 ~ 440 | 600 ~ 620 |
| Recycling concentration (%) | 93-95 | |||||
| Form of filler | Stainless steel corrugated filler | |||||
| Container categories | Normal pressure | |||||
| Equipment weight (kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 6800 |
| Length | 2300 | 2600 | 2500 | 3000 | 3500 | 4200 |
| Dimenshen Dimension (mm) wide W | 700 | 800 | 1000 | 1200 | 1400 | 1800 |
| High H | 7300 | 7500 | 9000 | 9000 | 10000 | 10000 |
